SXI 1050 Industrial Series Auger Spreader
Model # SXI 1050
The big Meyer Industrial SXI 1050 Industrial Series V-Spreader combines Heavy Duty components with a high quality spread pattern to make the best use of your valuable manure other materials. Our unique Rear Discharge System is unlike all others, incorporating two shaft-driven vertical expellers. They are fed by an aggressive 3 auger system to power through pack manure, semi solids, sand sludge, slurry, litter, biosolids and certain lime and compost products. Rear discharge keeps your tractor and spreader clean while maximizing the value of the product you are applying. This 5,100 gallon monster is ready to take on your biggest jobs!
PHOTOS
VIDEOS
Meyer SXI Industrial V-Spreader in Litter

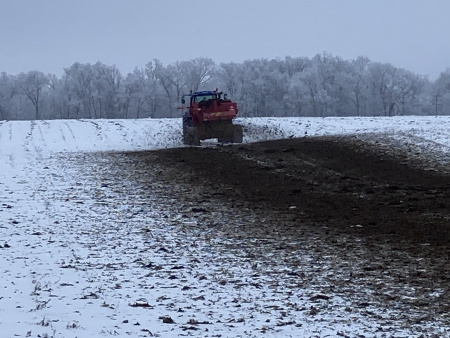

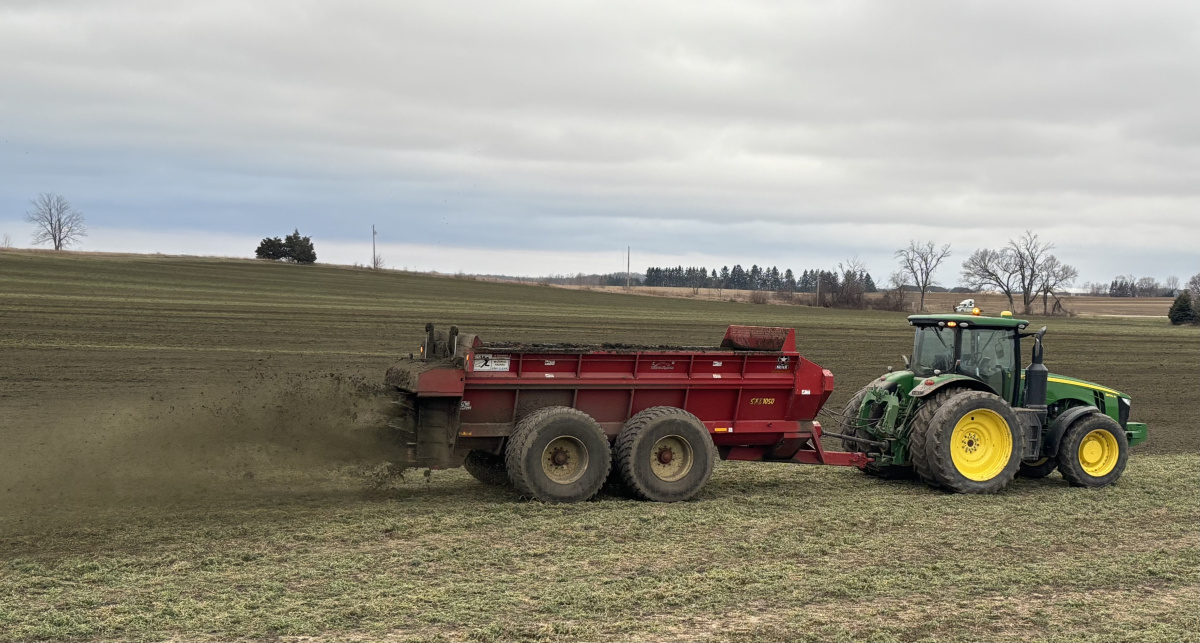

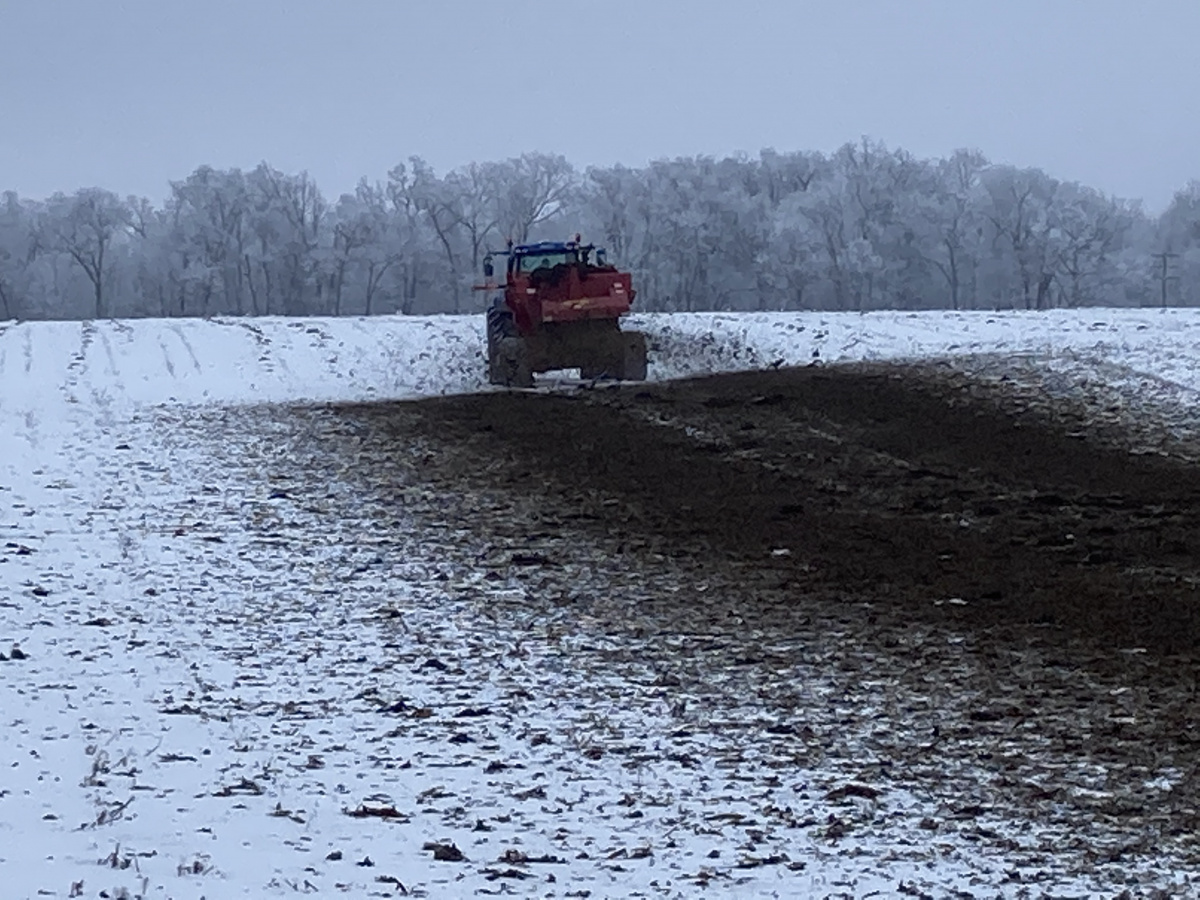

Accurate Application / Consistent Performance
FEATURES

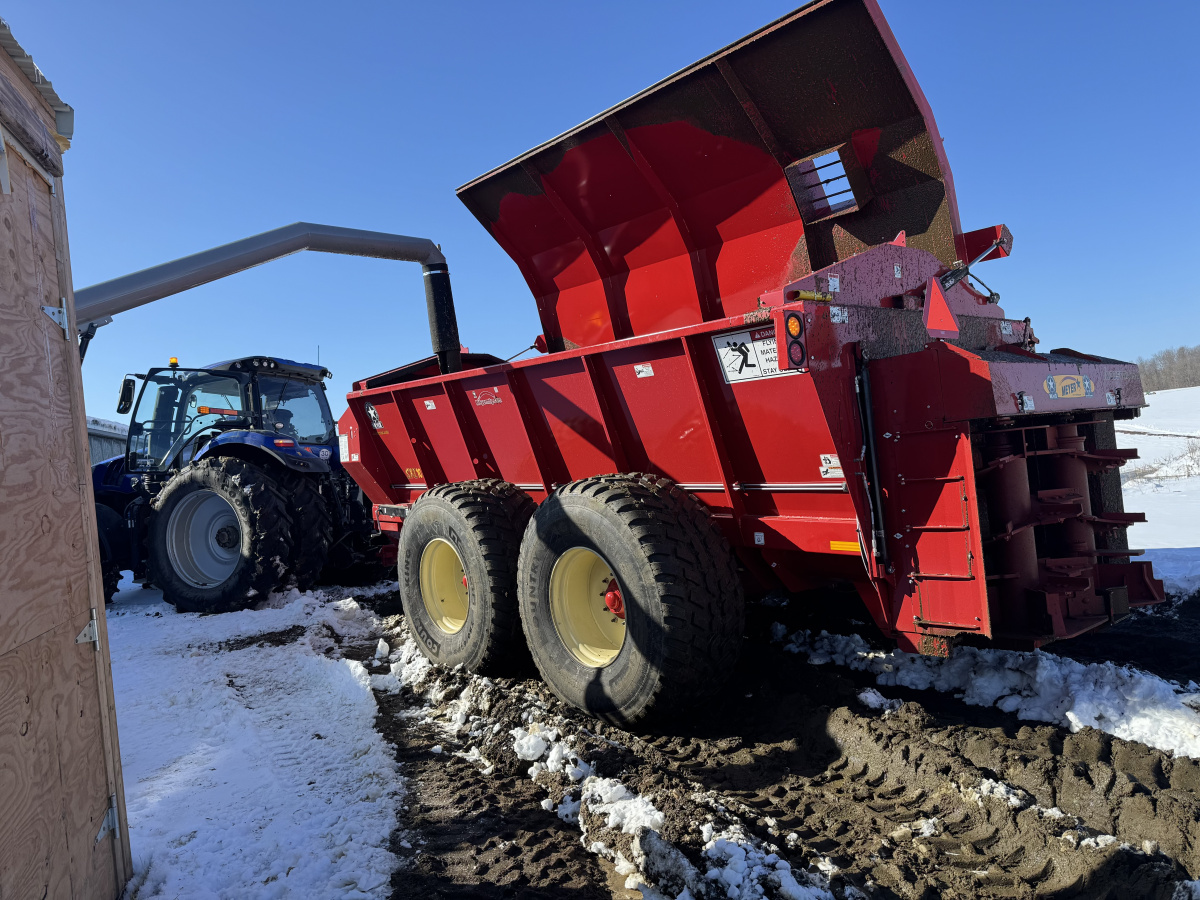

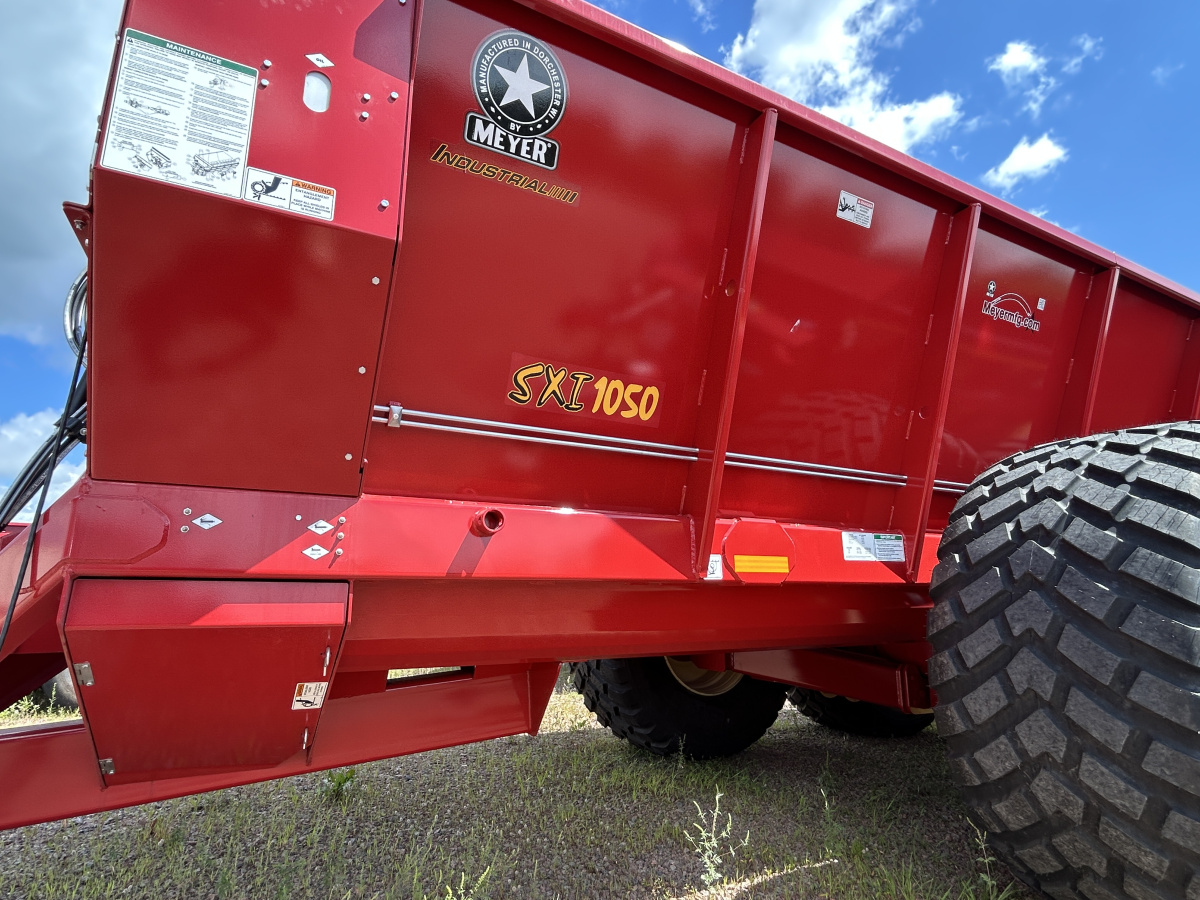

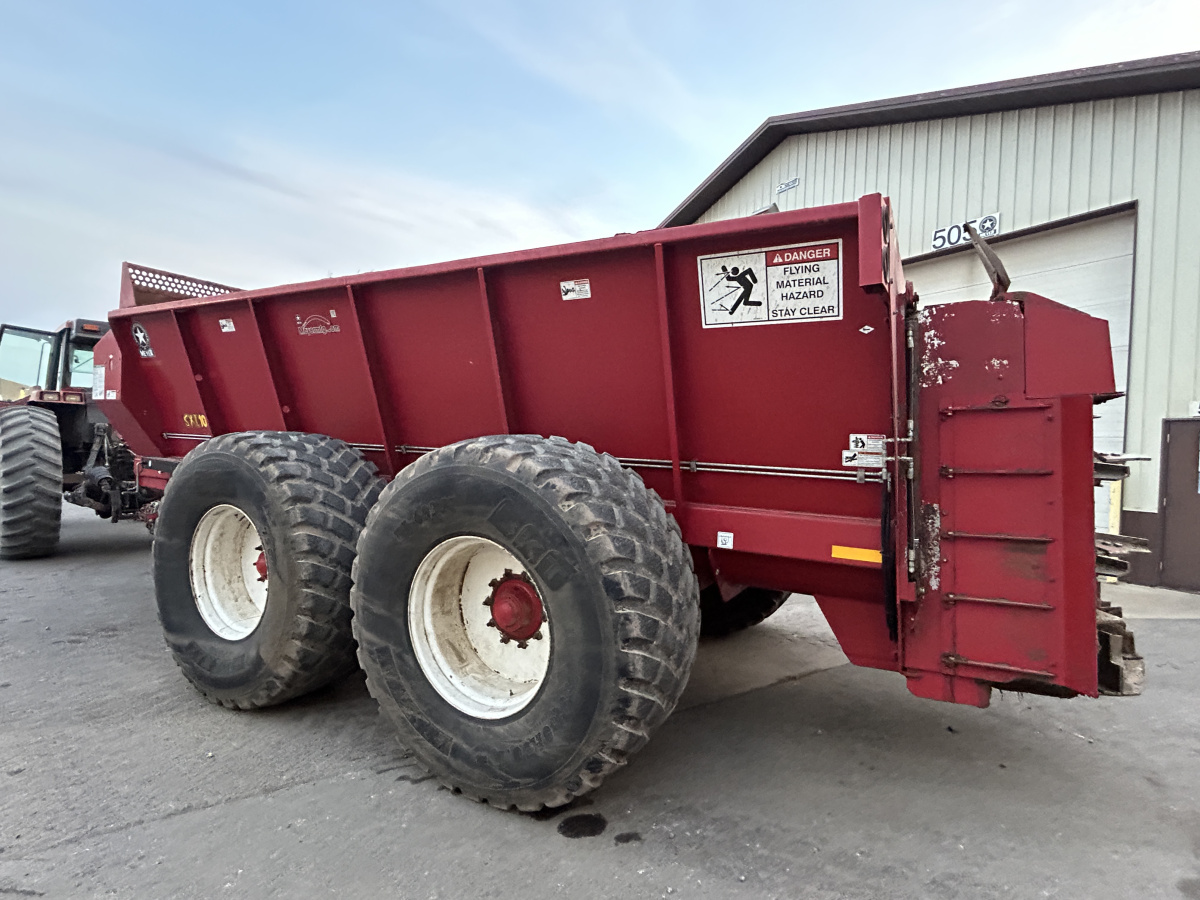

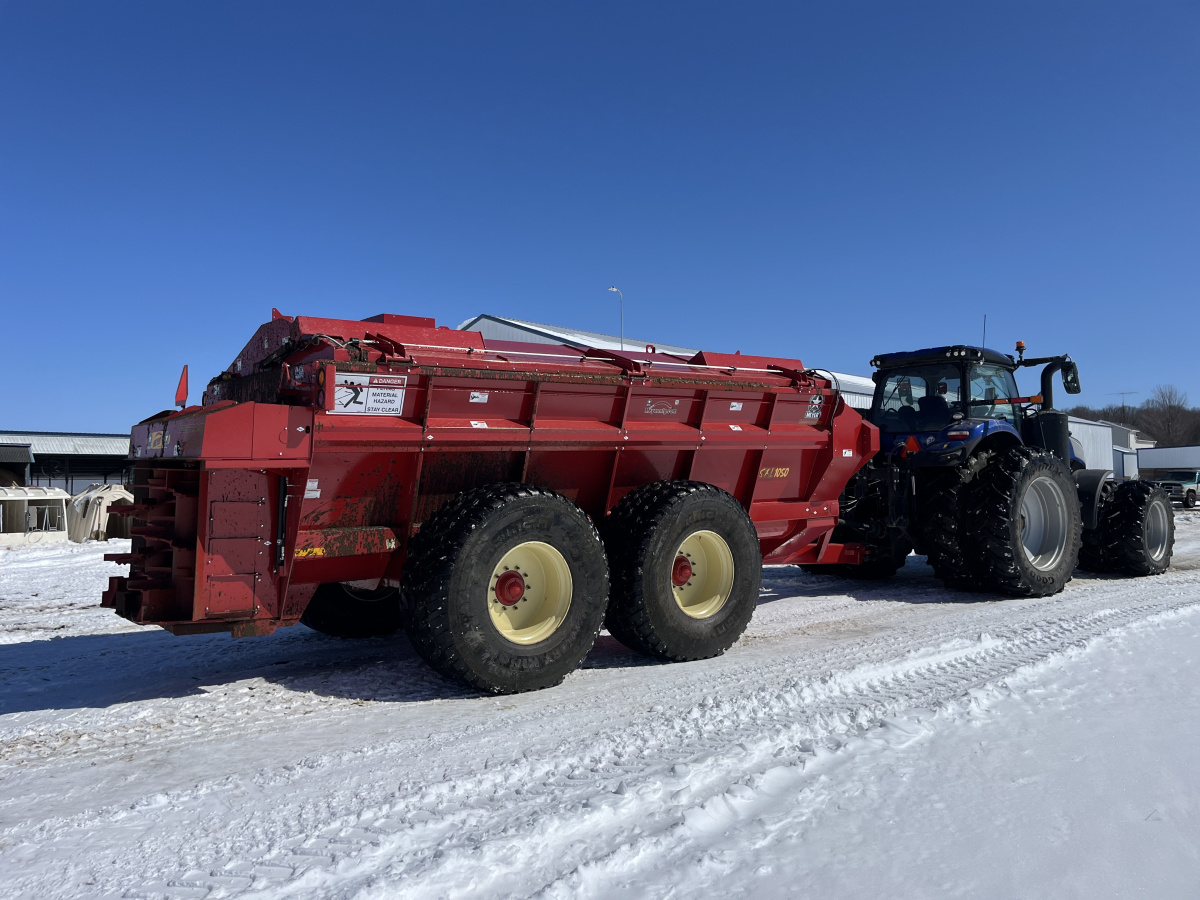

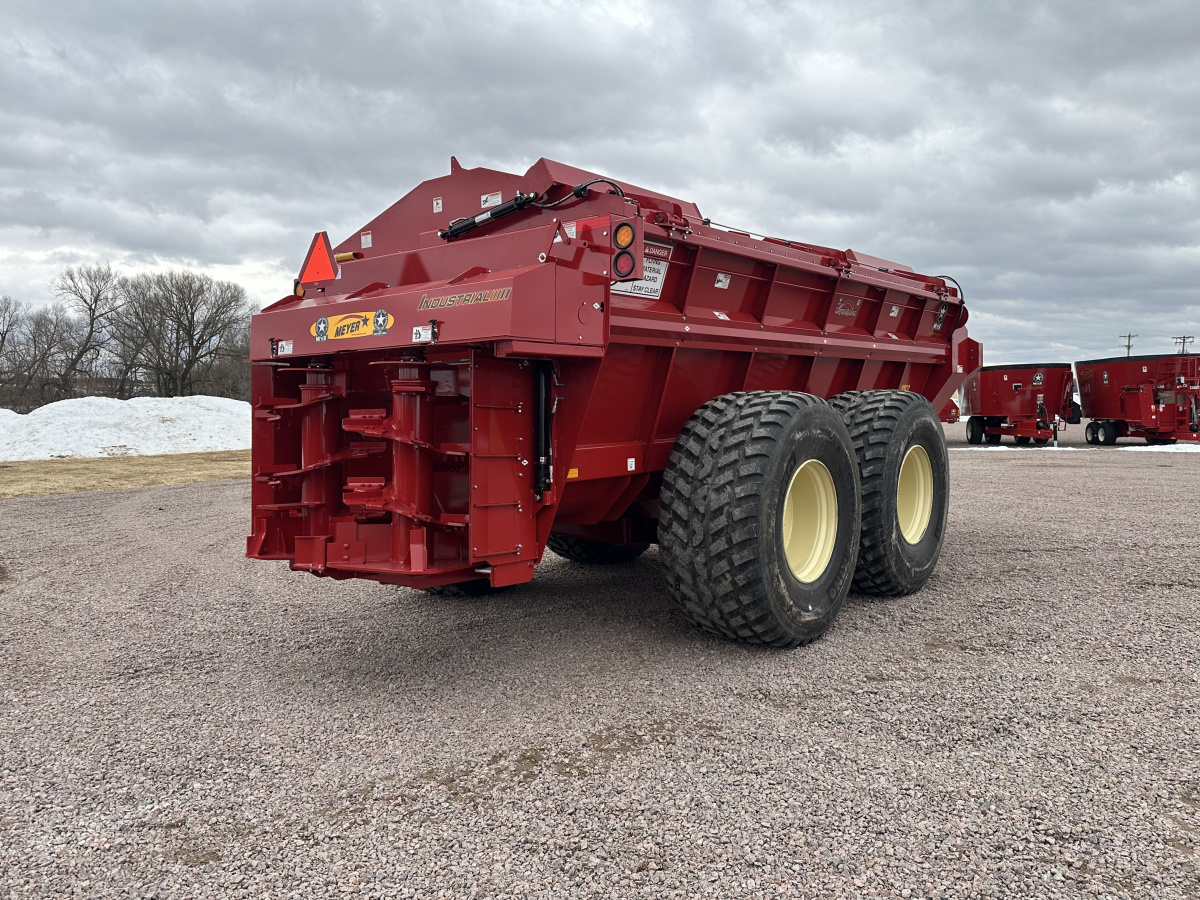

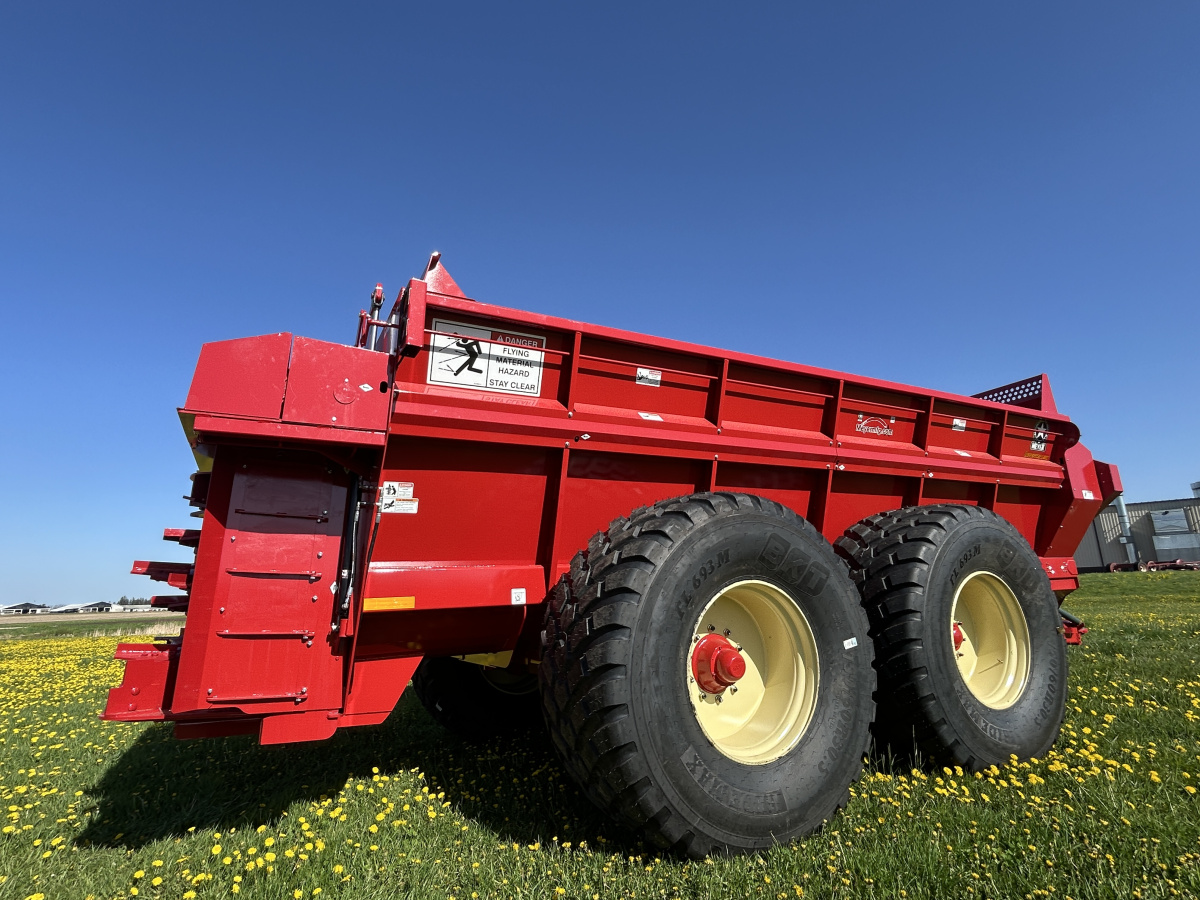

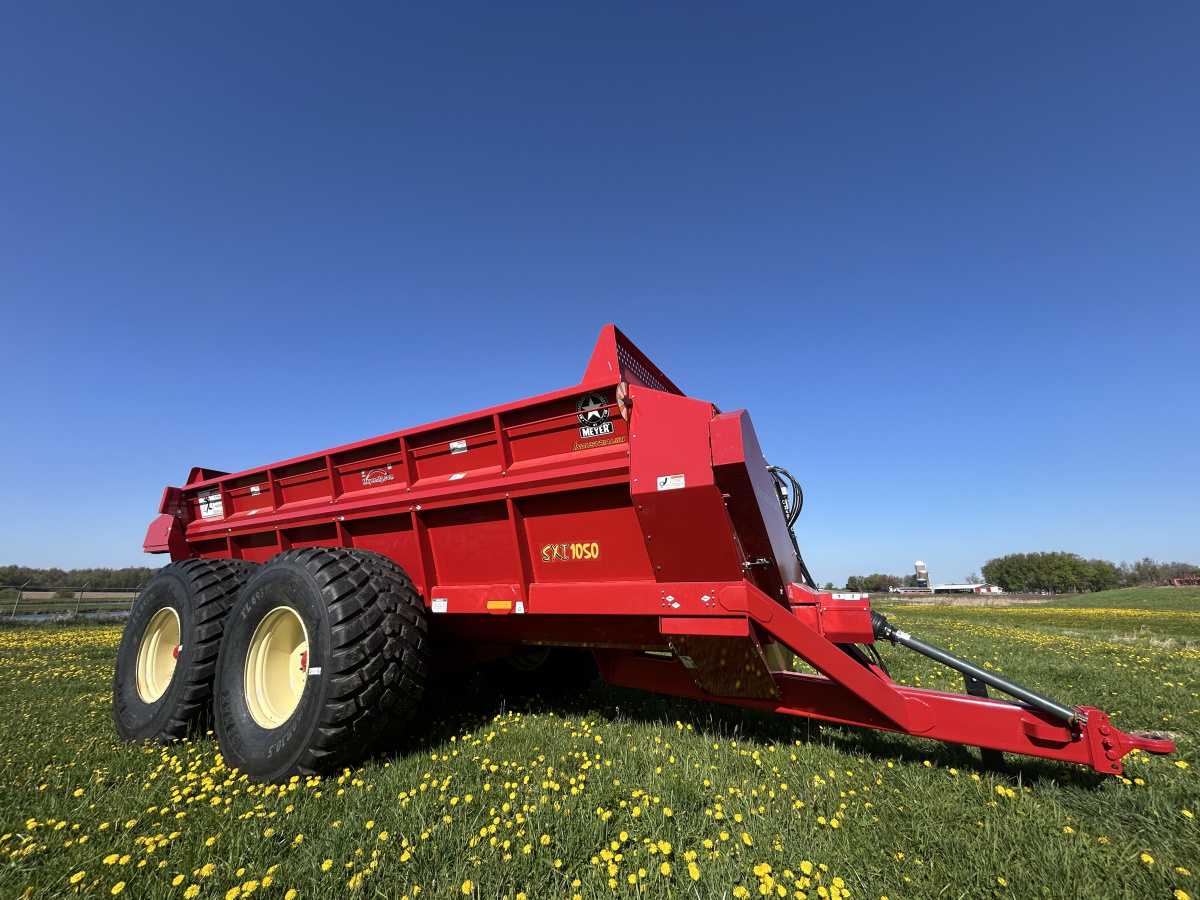

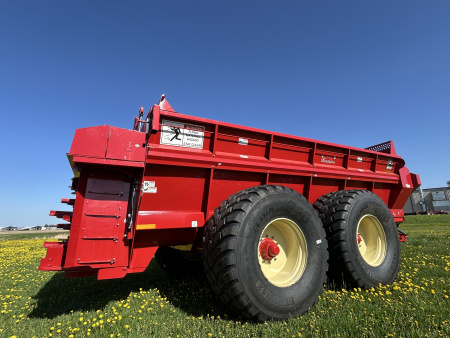

The SXI 1050 Industrial Pull Type
The SXI 1050 Model is available in tandem axle, pull-type version only. No truck mount option. 5,100 Gallon Capacity!
The other guys talk about Industrial features, we mean it. This machine is HEAVY DUTY in all the places you need it. Thicker tank, larger augers, bigger drive components and added protections keep you on top of the game!

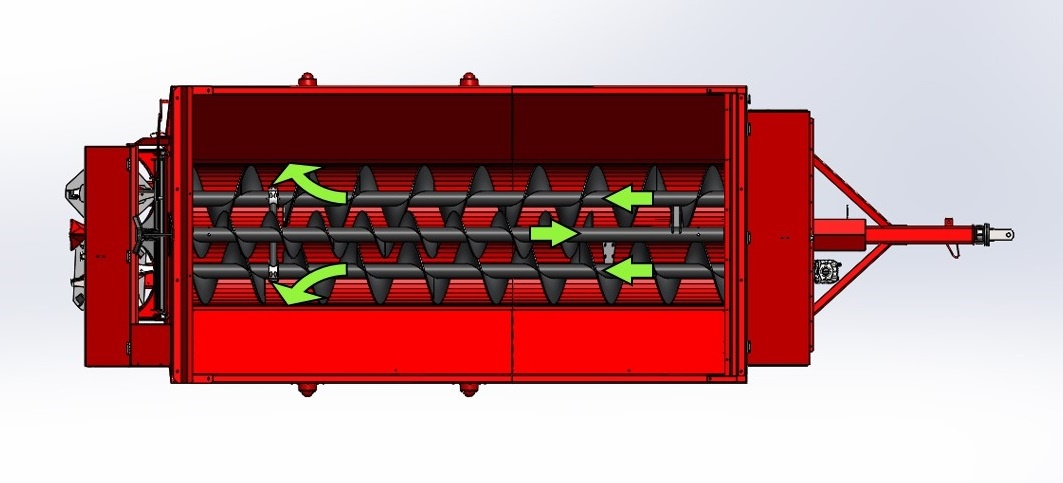

Meyer patented straight line flow - provides the ultimate spread performance. Better pattern, faster unload time, less horsepower & minimal wind drift!

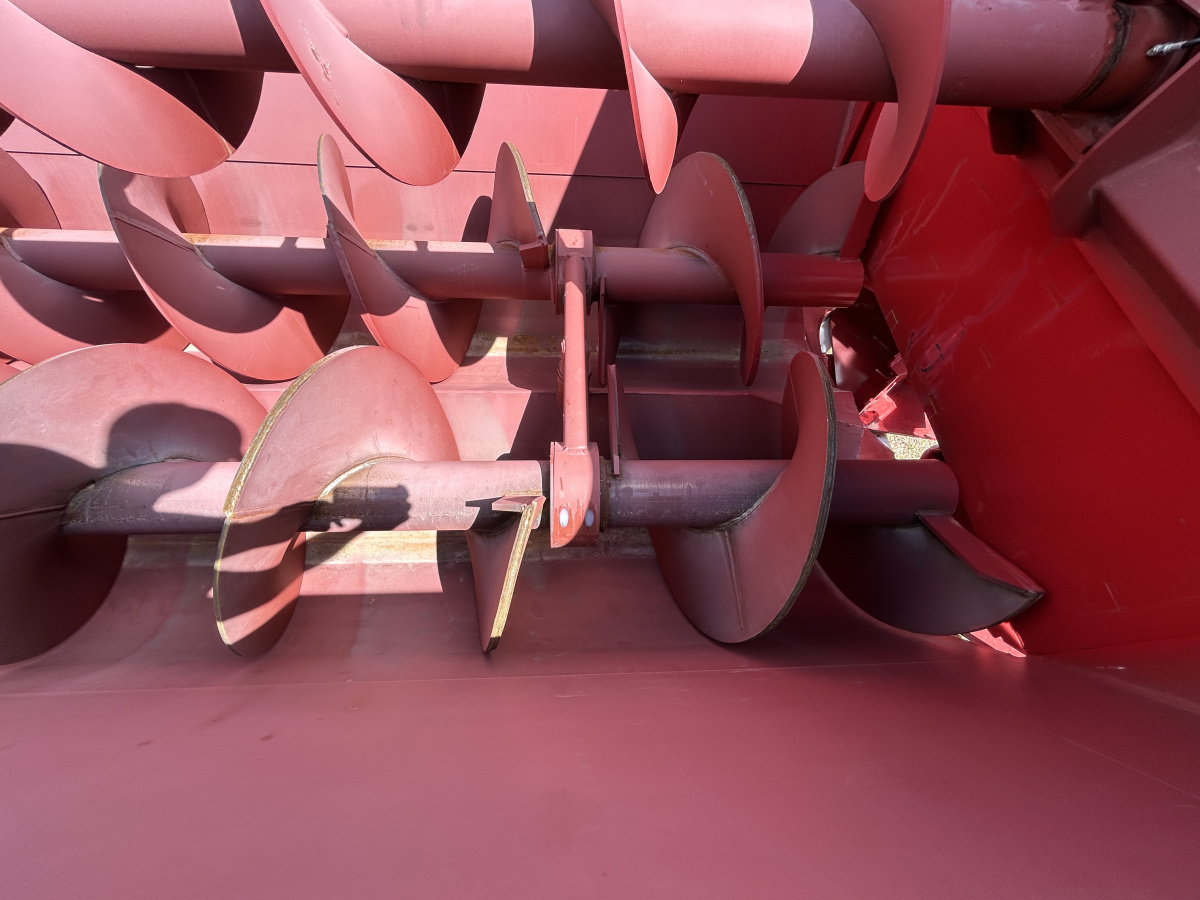

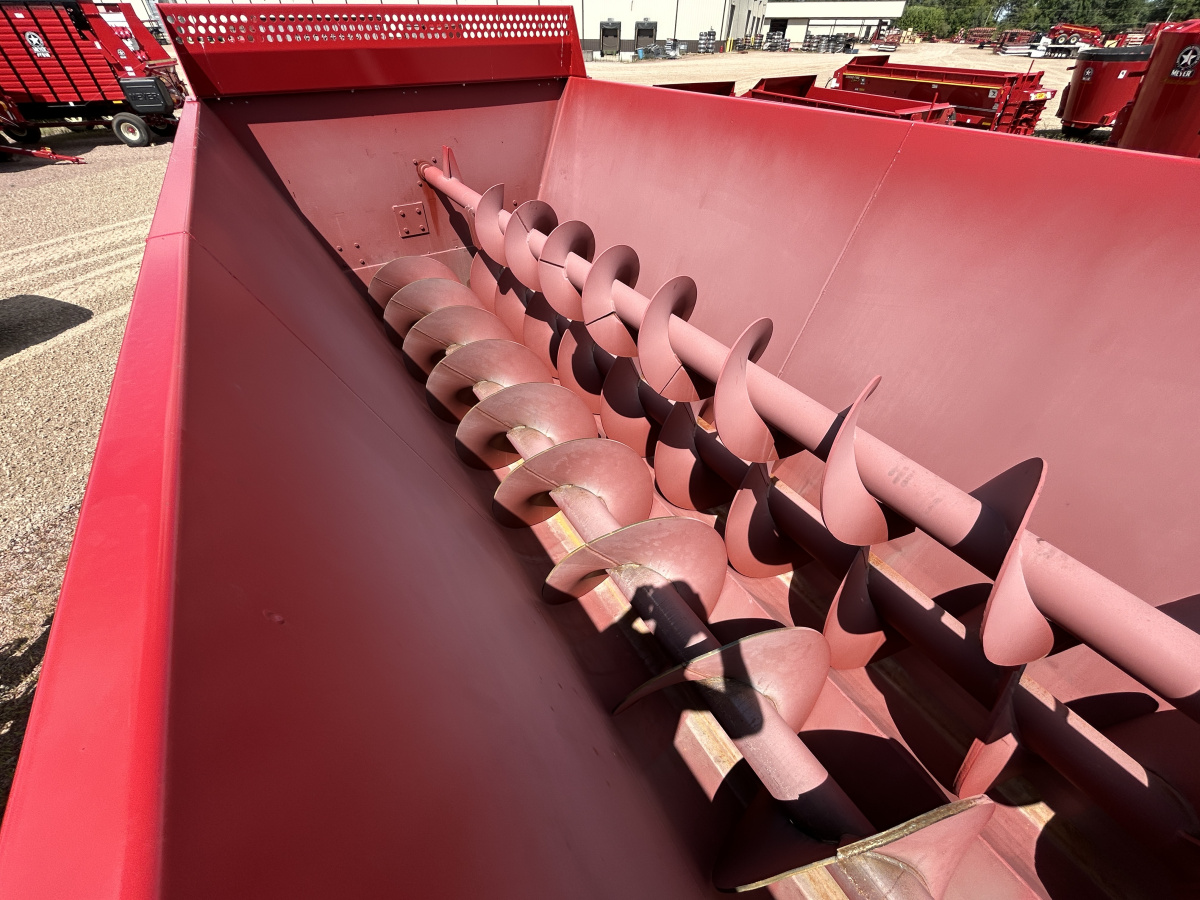

3 Auger System...Only One of its Kind!

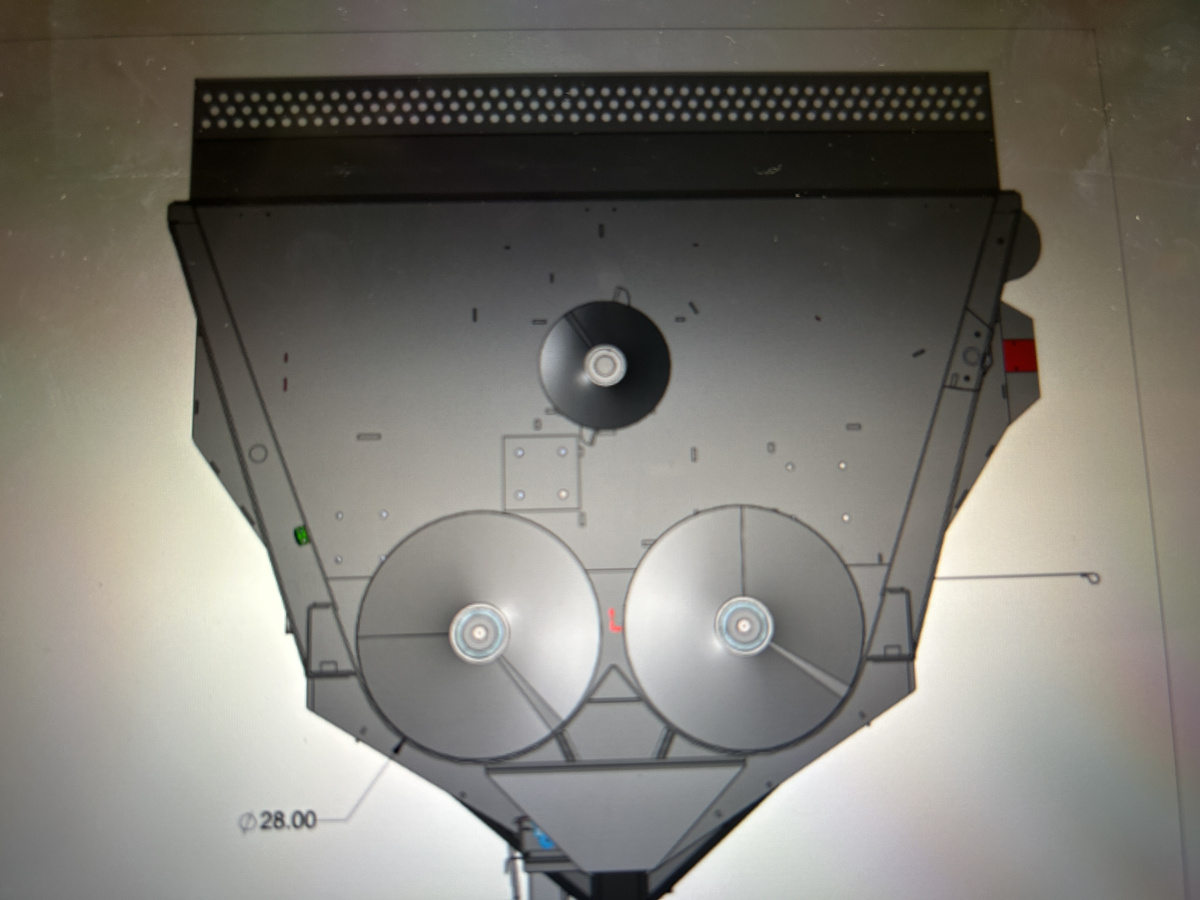

Lower 28" augers feed the giant rear door while the upper 16" auger levels the load forward to eliminate bridging. 3/8" SECTIONAL AUGER FLIGHTING THROUGHOUT!
The Meyer Dual Lower Auger design creates a wide profile at the bottom of the tank. This means that we can maintain the lowest load height in the industry with maximum capacity. Stops bridging too!

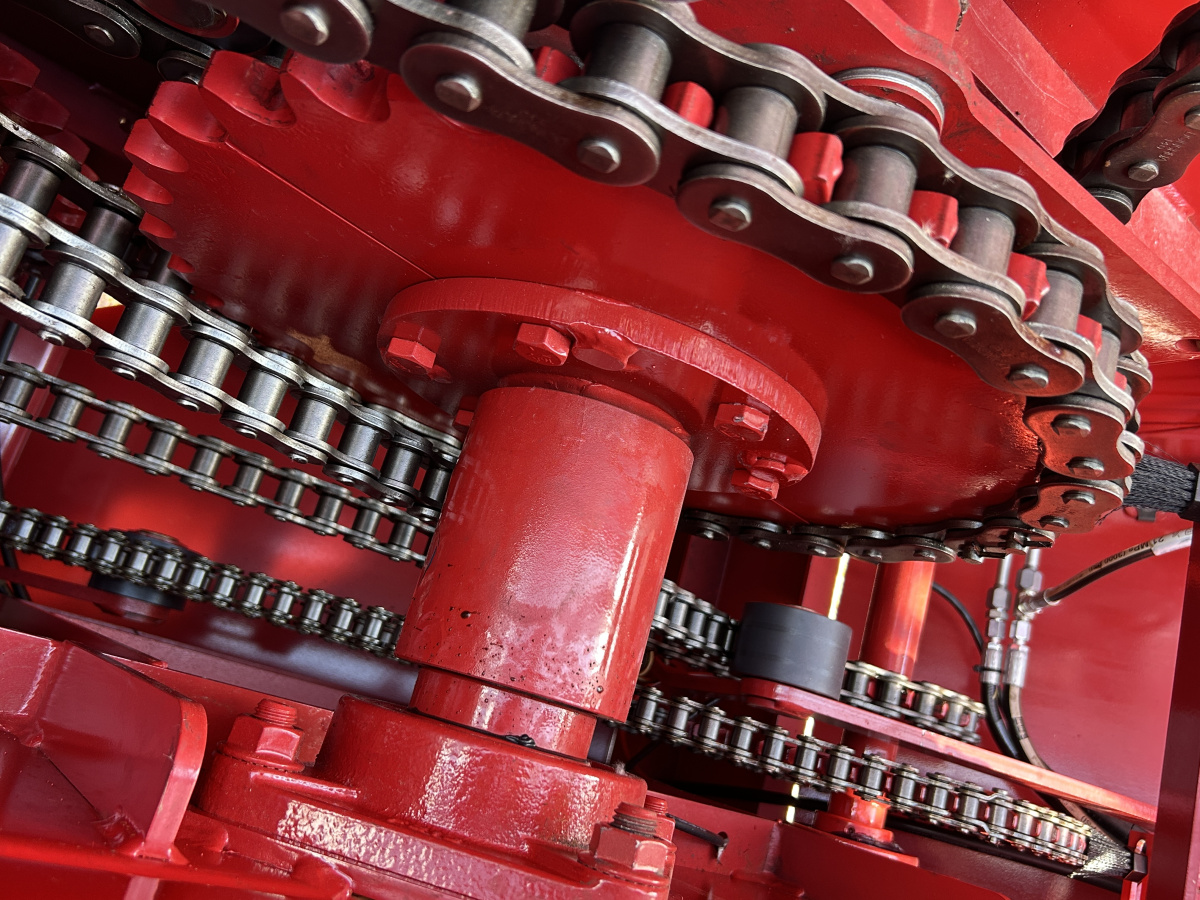

Heavy Duty Drivetrain
The Drive System on this Industrial SXI 1050 is impressive, resized drive sprockets reduce chain loading. This simple, yet efficient system has #140 final drive chains for your largest loads!

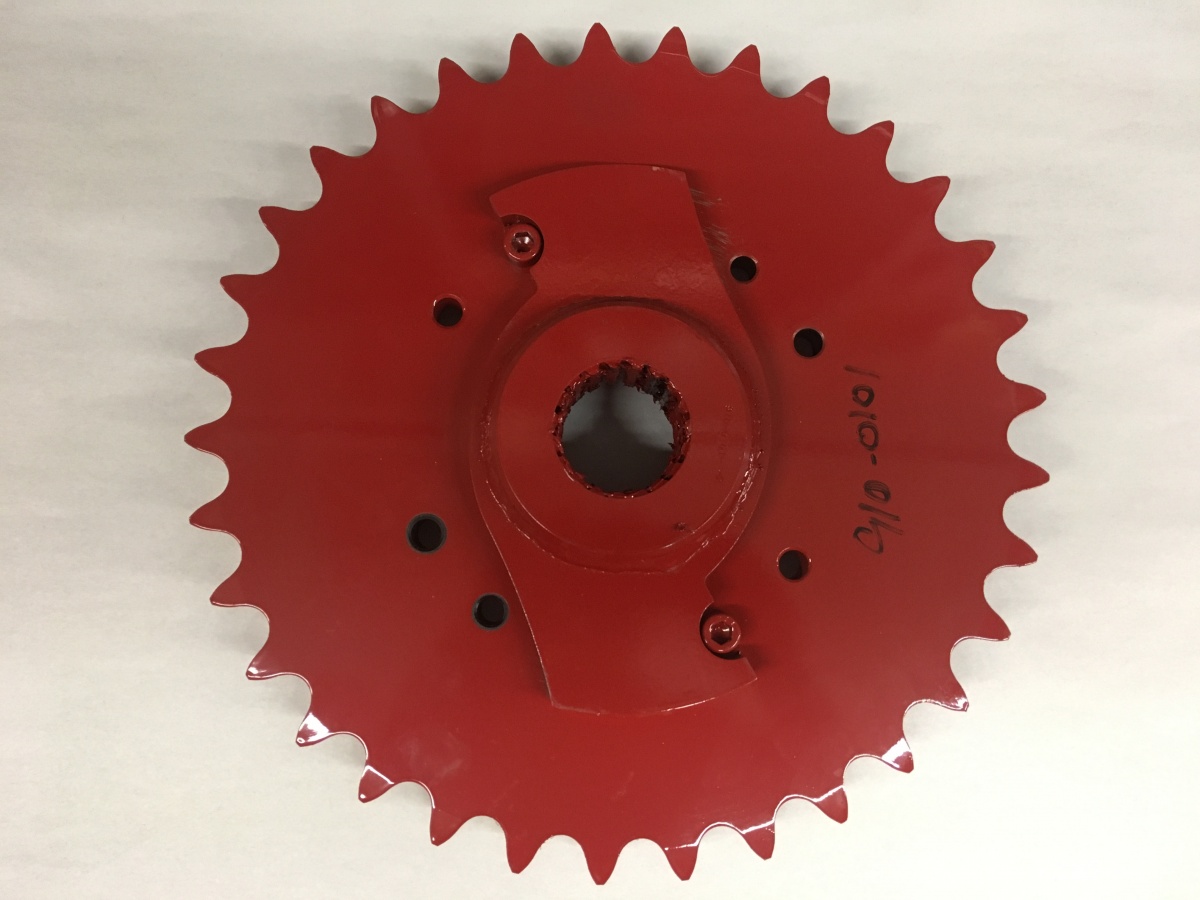

Auger Speed Changes are quick and easy on the SXI 1050 using this simple 2-piece A-Plate sprocket design.
Independent Lower Auger Shear Bolt Protection is standard. Allows you to protect an obstructed auger while still unloading a majority of the load with the other lower auger. Bound to save you time & aggevation!

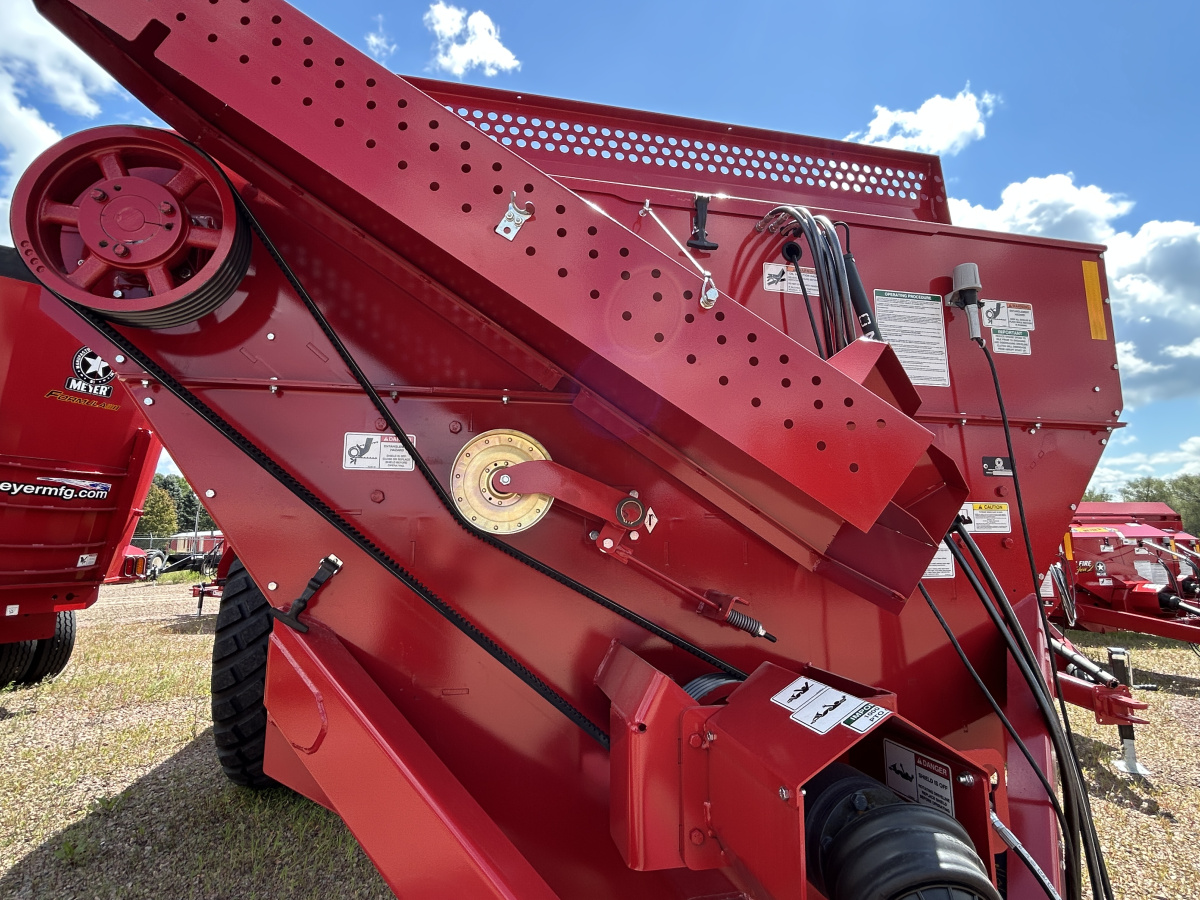

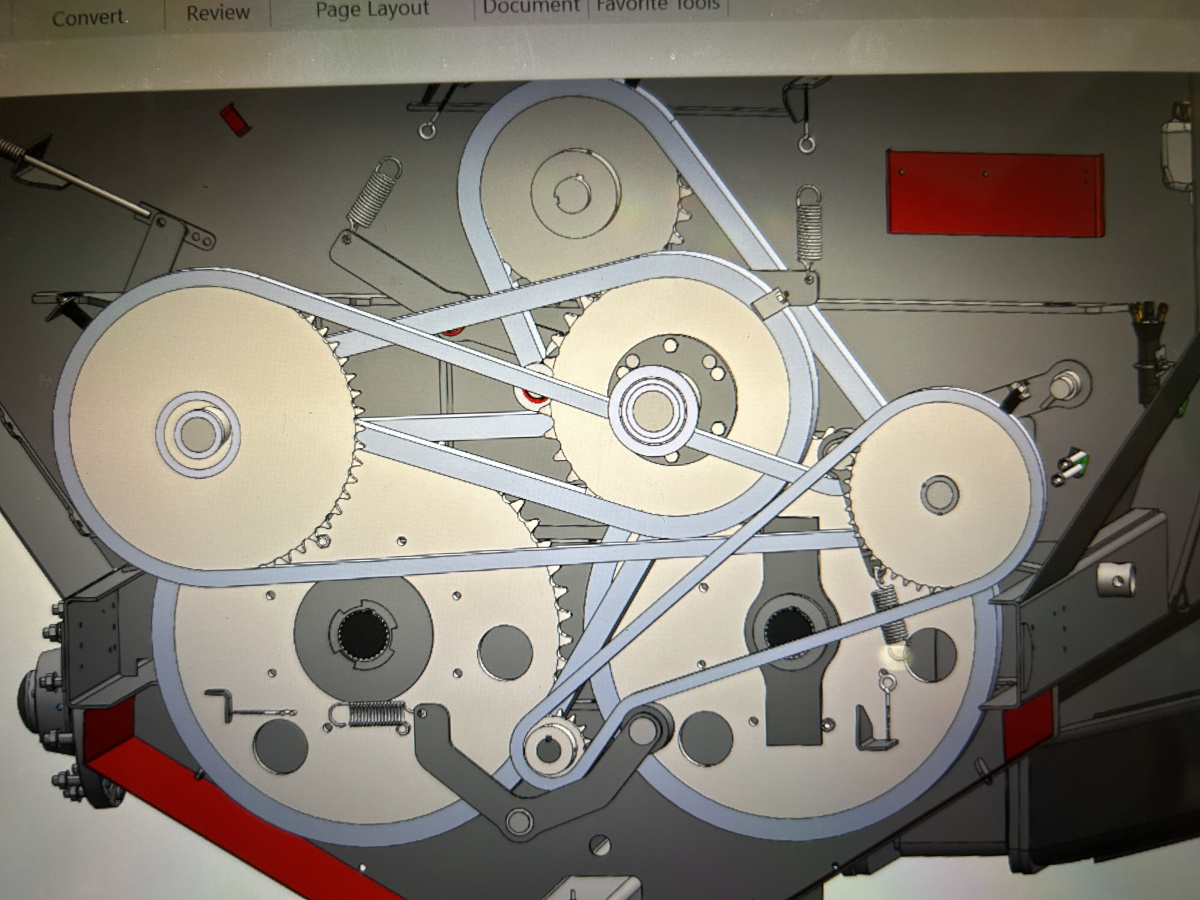

New Belt Driven Expeller System
This multi-groove belt transfers power to the rear expeller system in a smooth, quiet fashion. You have to hear it to believe it! The expellor drive also features an over-running clutch.

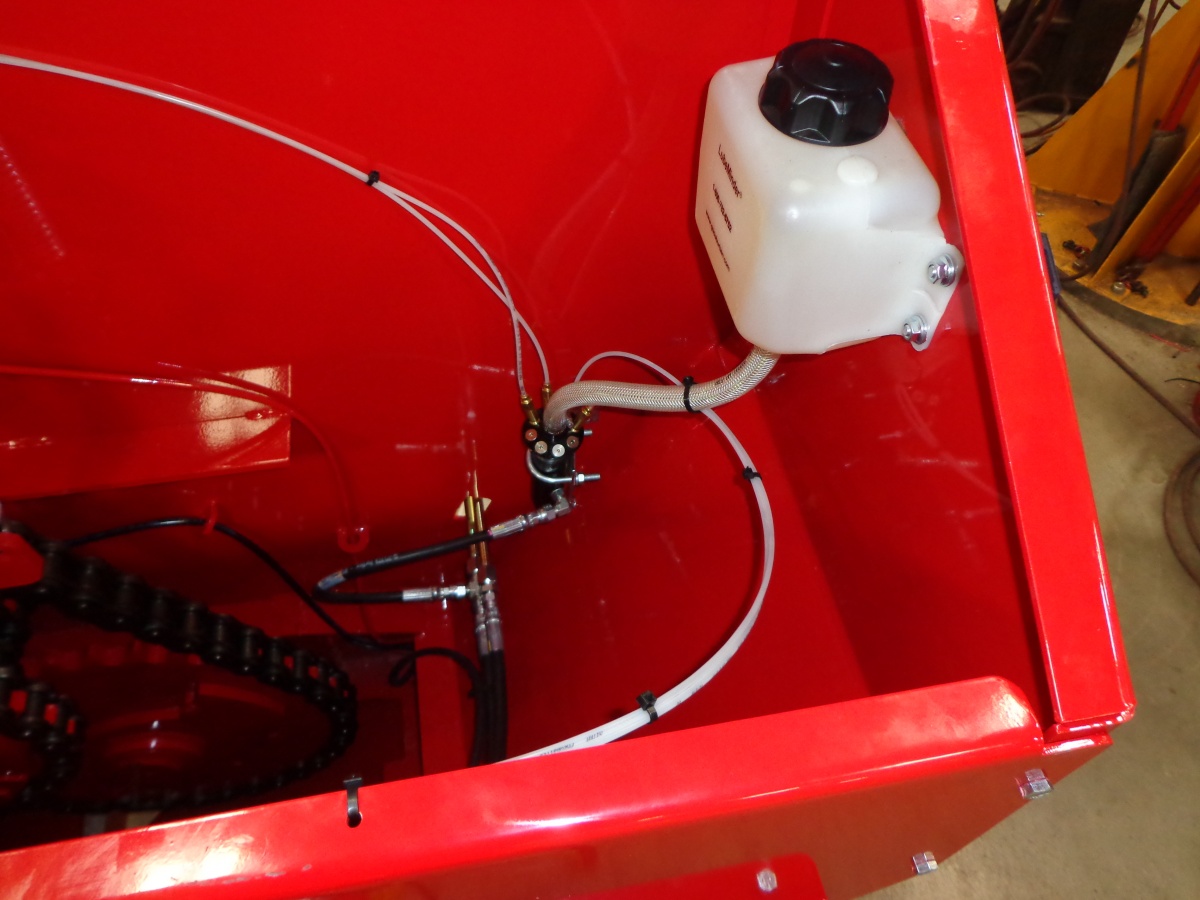

Automaitc Roller Chain Oiler
This Standard Feature oils all roller chains each time you operate the tailgate. Eliminates reduced access and manure contamination associated with oil bath systems.

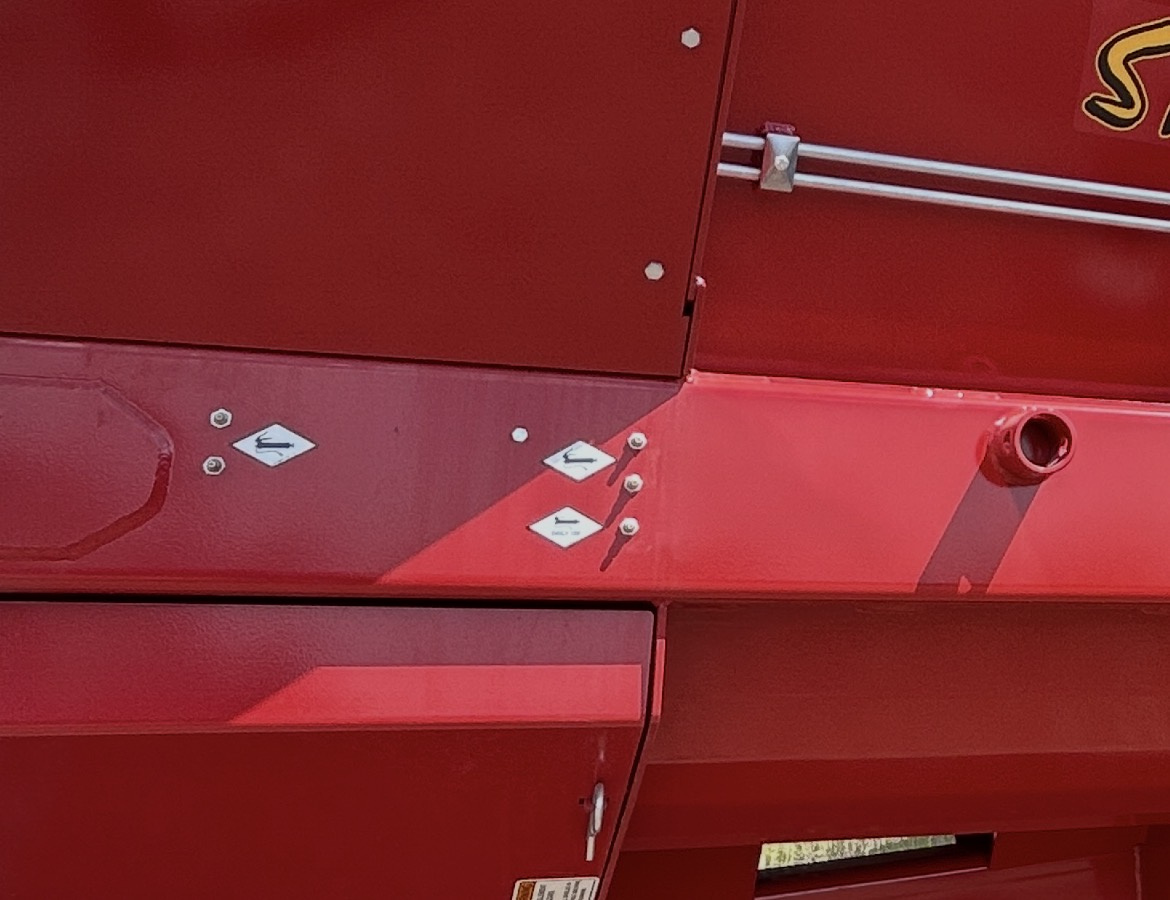

Remote greasing on SXI models is standard allowing for convenient & safe maintenance.

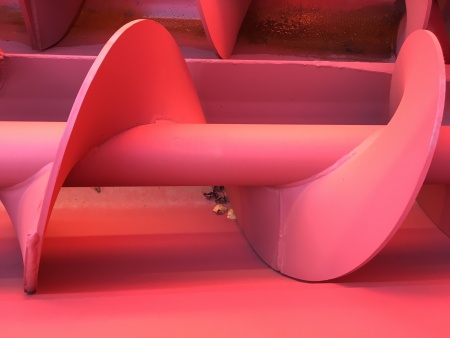

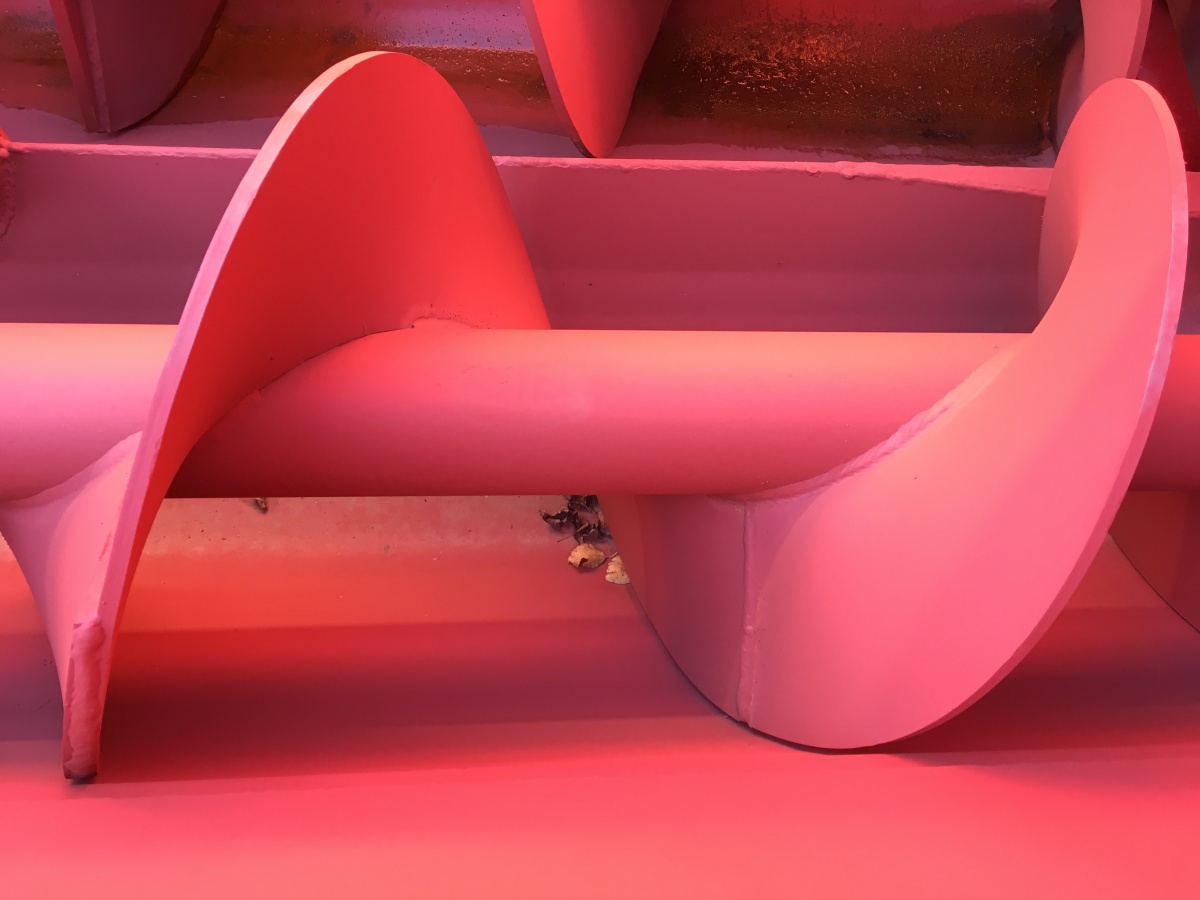

3/8" sectional flighting on lower augers - doubled in critical areas. No paddles to wrap, freeze or wedge rocks like other brands.
Our revolutionary T-Post auger hold-down retains a nylatron (no maintenance) bushing and maintains tight auger tolerance to the tank floor. This system provides excellent cleanout!

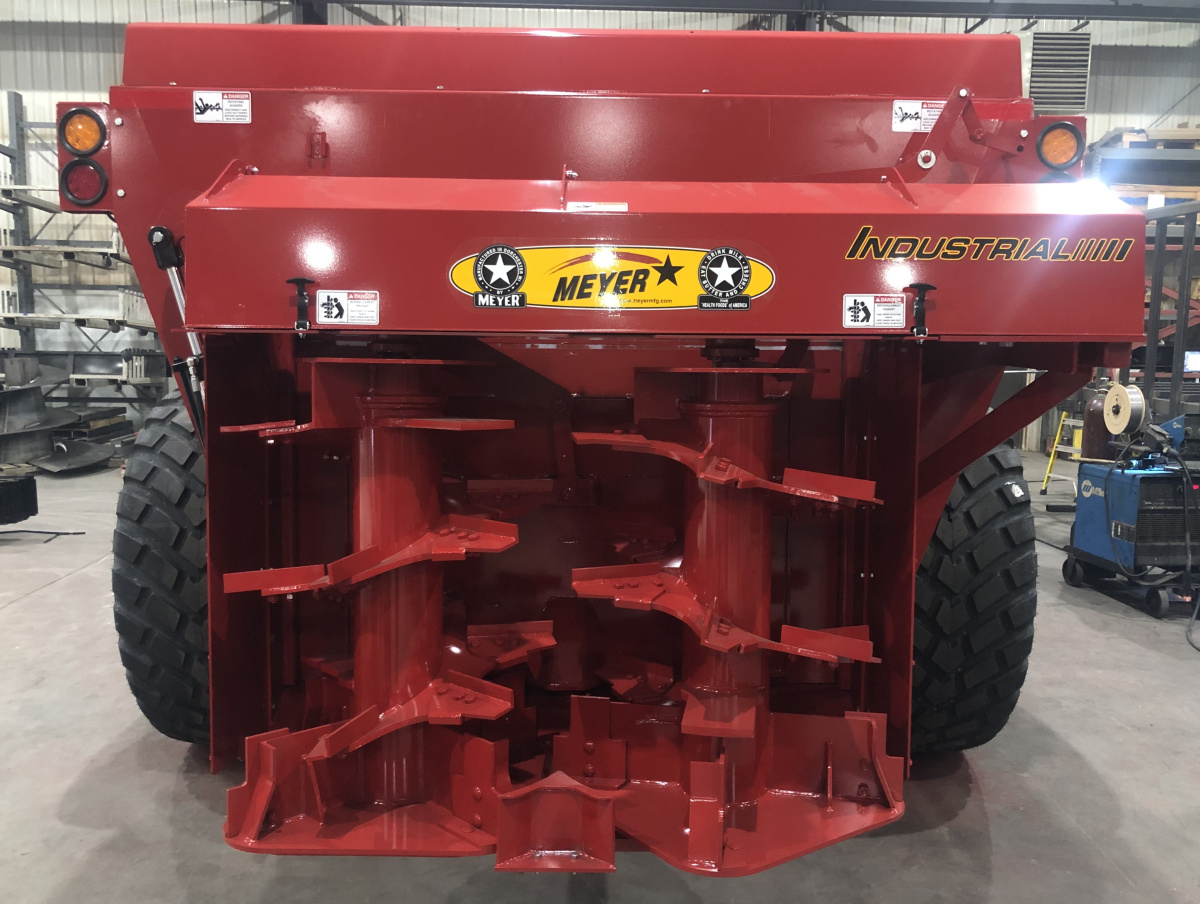

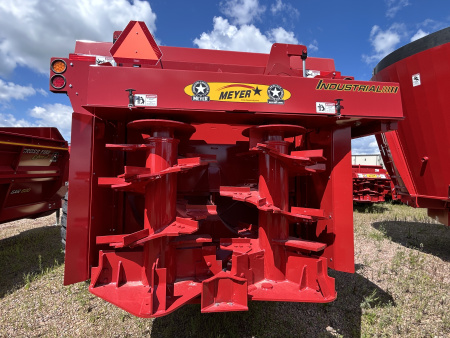

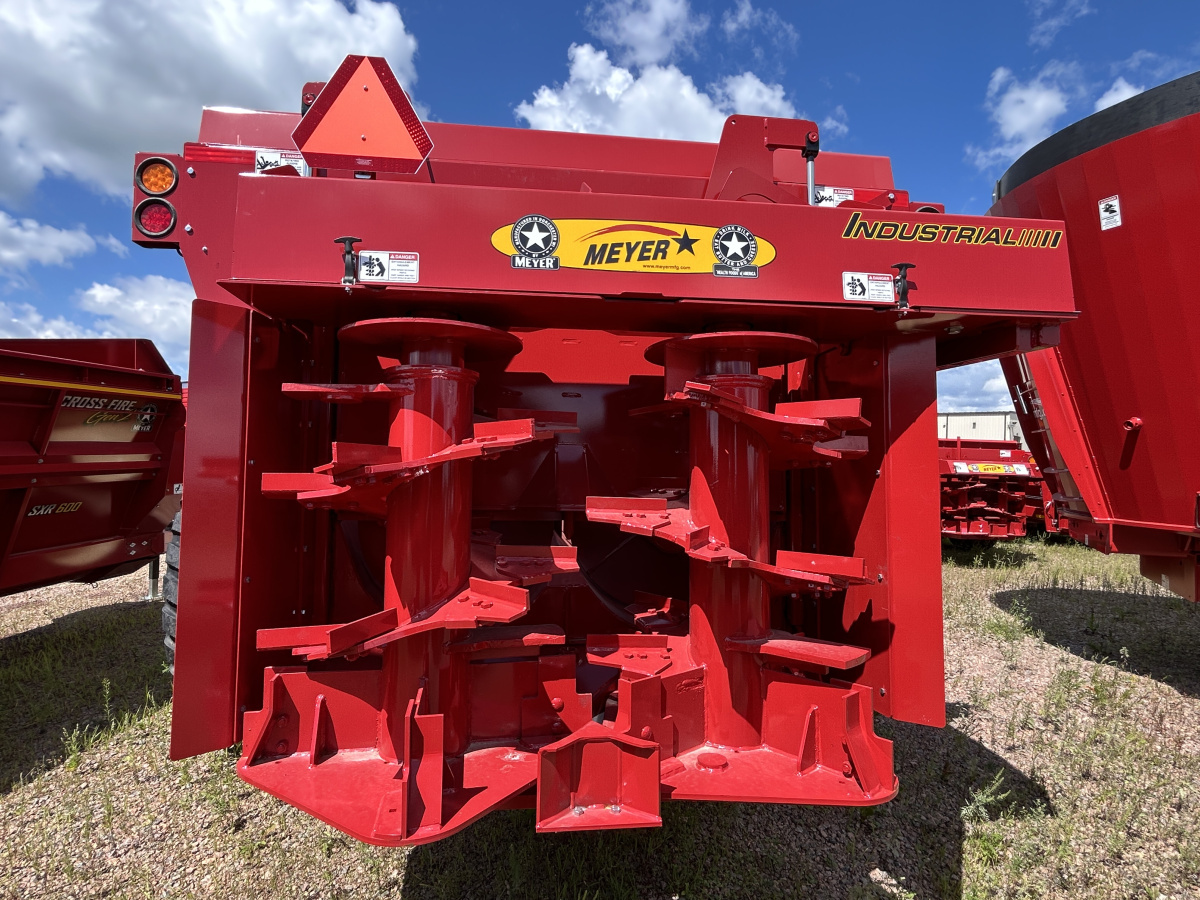

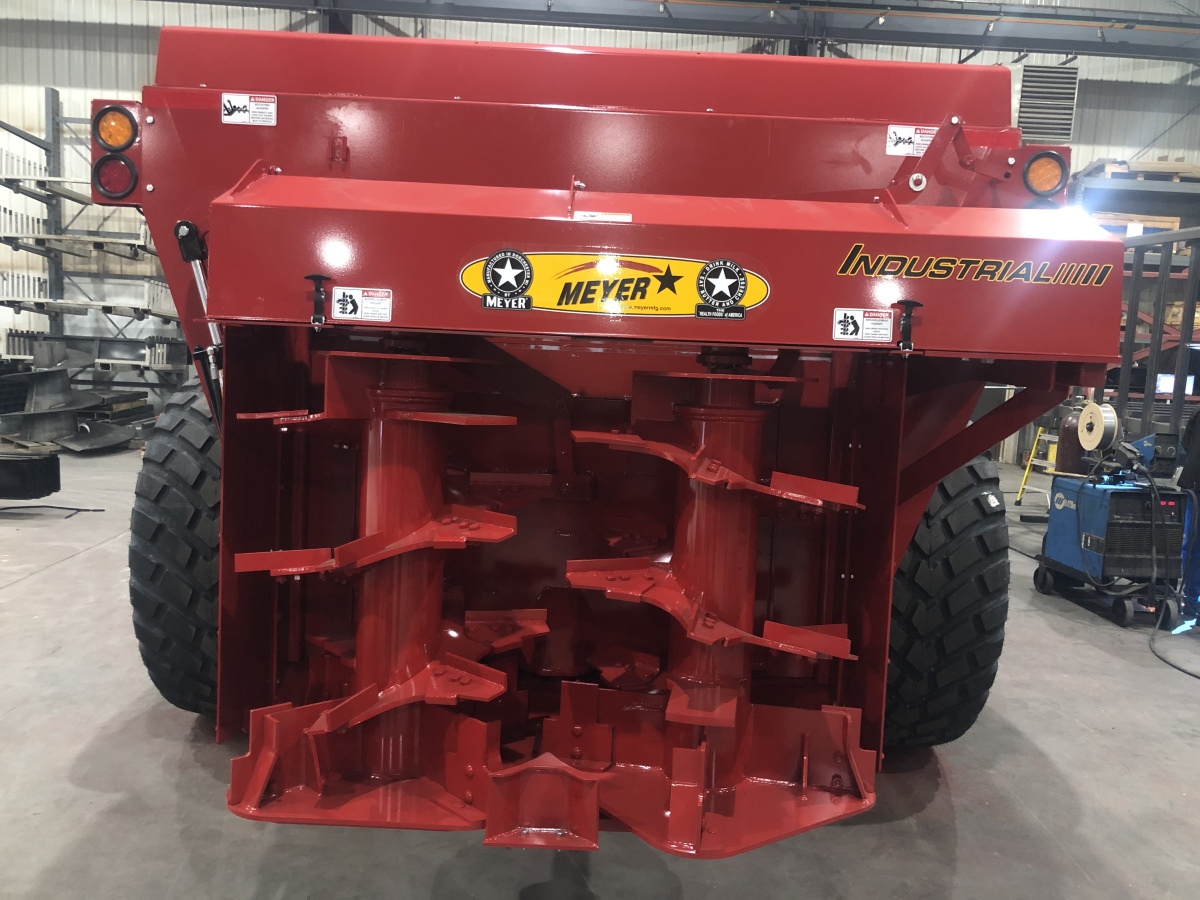

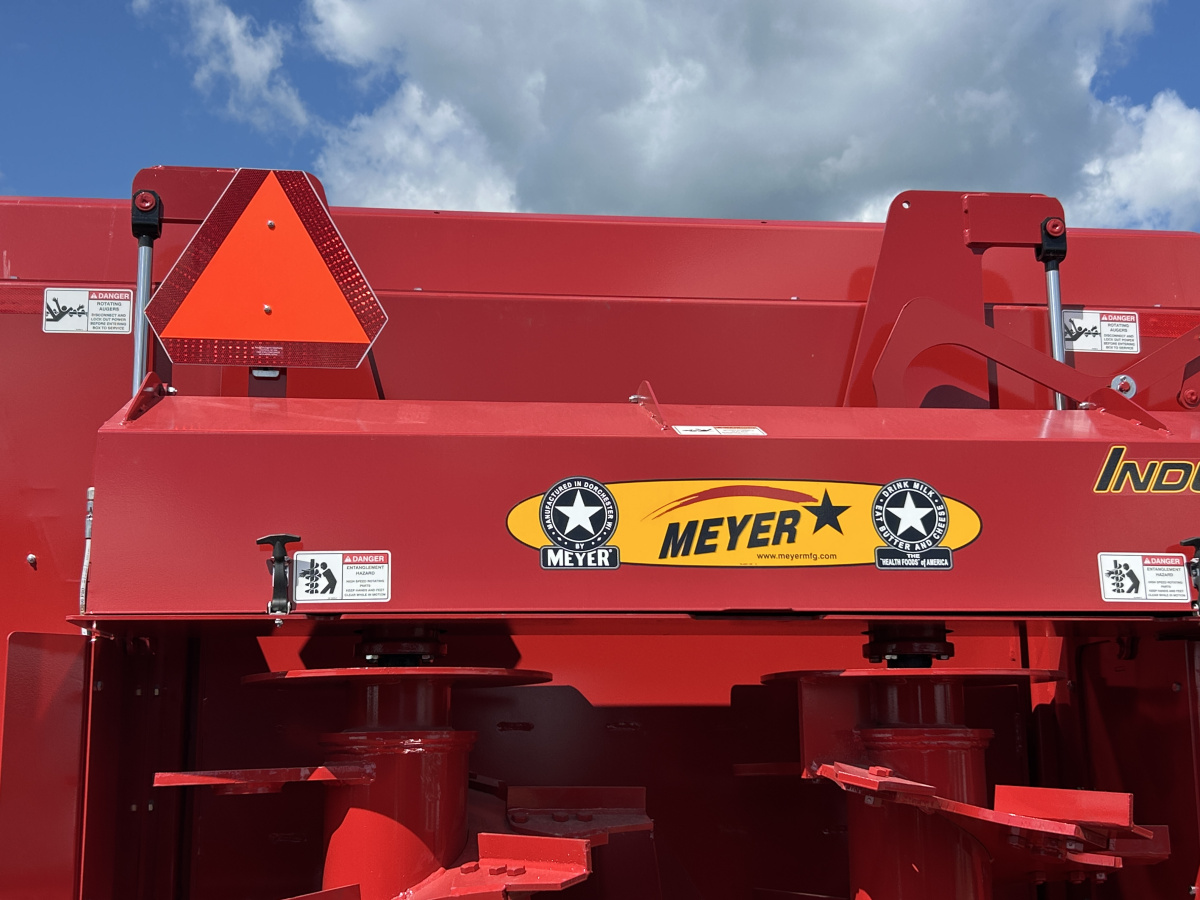

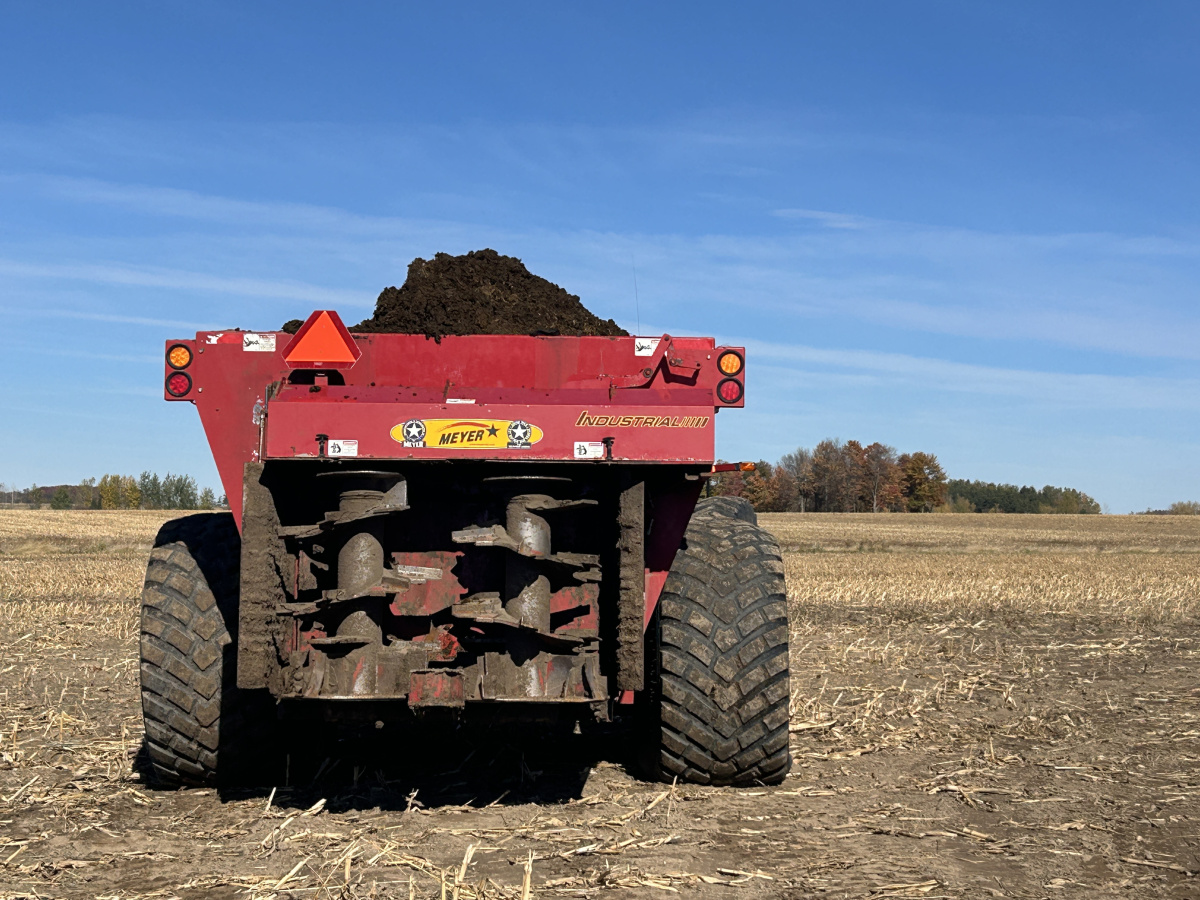

Vertical Twin, 35" Expellers pulverize material for a smooth, even application. This machine bands material across the back like a fertilizer spreader, unlike side delivery units that attempt to throw material out one side.

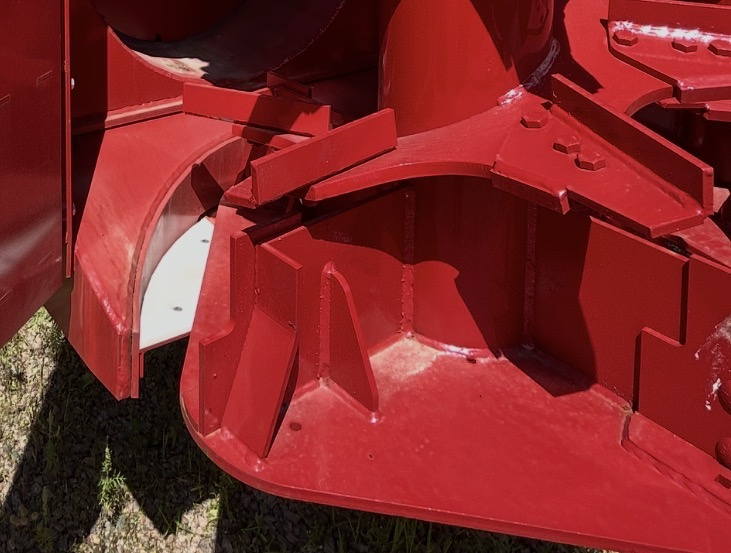

Replaceable Expeller Wear Parts
The SXI 1050 is equipped with replacable beater teeth throughout and replacable plates behind the beater for easy long term maintenance. Notice the auger wear teeth even have lead edge protection!

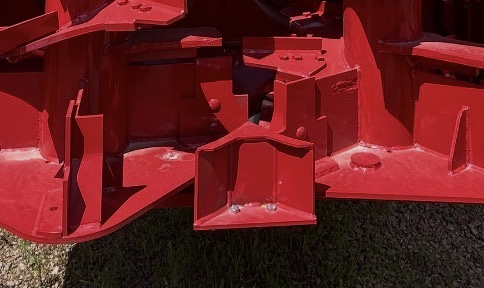

A Center Wedge dirverts material to the outside of the pattern for consistent spreading in all types of product - liquid or dry!
Rear Expellers with shock load couplers on all SXI models, no chains on rear of this spreader. Industrial models feature an overrunning clutch on the rear expeller system to eliminate backlash at shutdown!

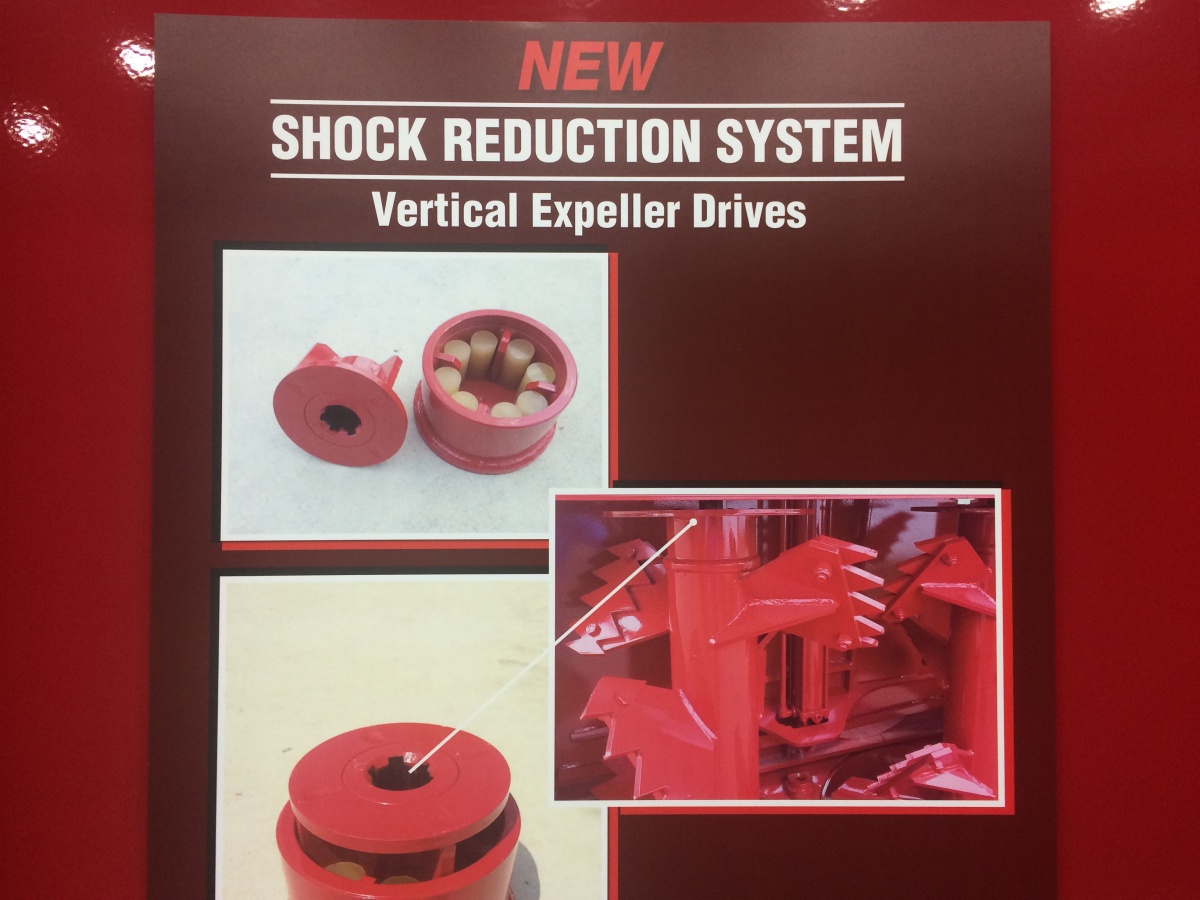

Check out this Shock Load Coupler System! Drastically reduces "shock/stress" related to rocks, ice and foreign objects to your expeller drivetrain. This dampening system along with a torque disconnect clutch protect your expeller drive.

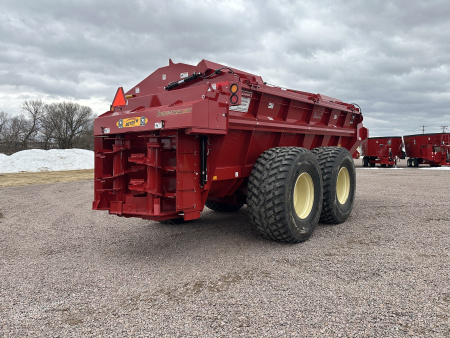

Large Door Opening
36.5x63" Door Opening dwarfs the others. Combined with the rear unload design, we can move tough loads out fast! Don't forget, all Meyer V-Spreaders have poly lined gate tracks (not steel on steel).

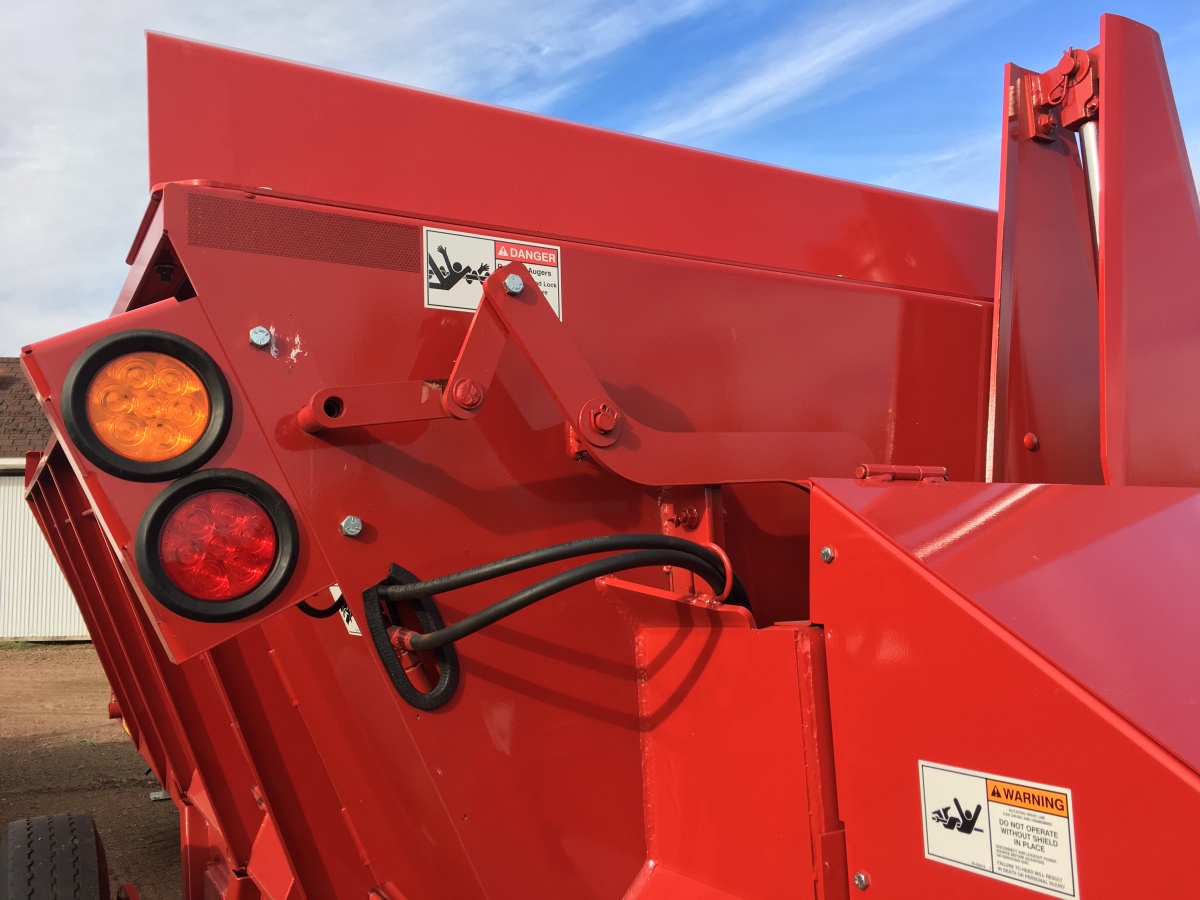

Dual Cylinder Lift Design
Combined with Poly Door Tracks, this thing is unstopable!

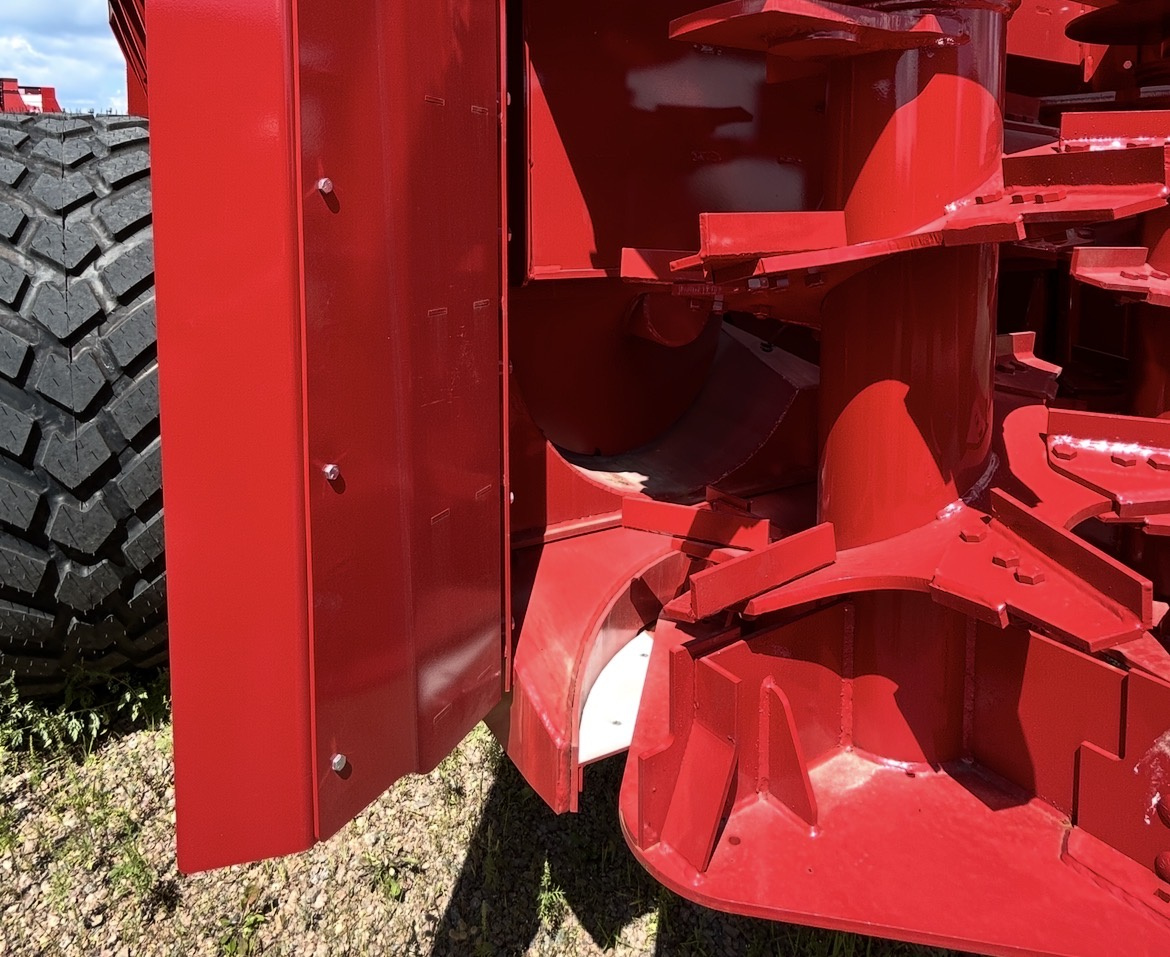

Clean-Out Panels
Hinged cleanout panels on the RH & LH side of the expellers offer quick easy access for cleaning.

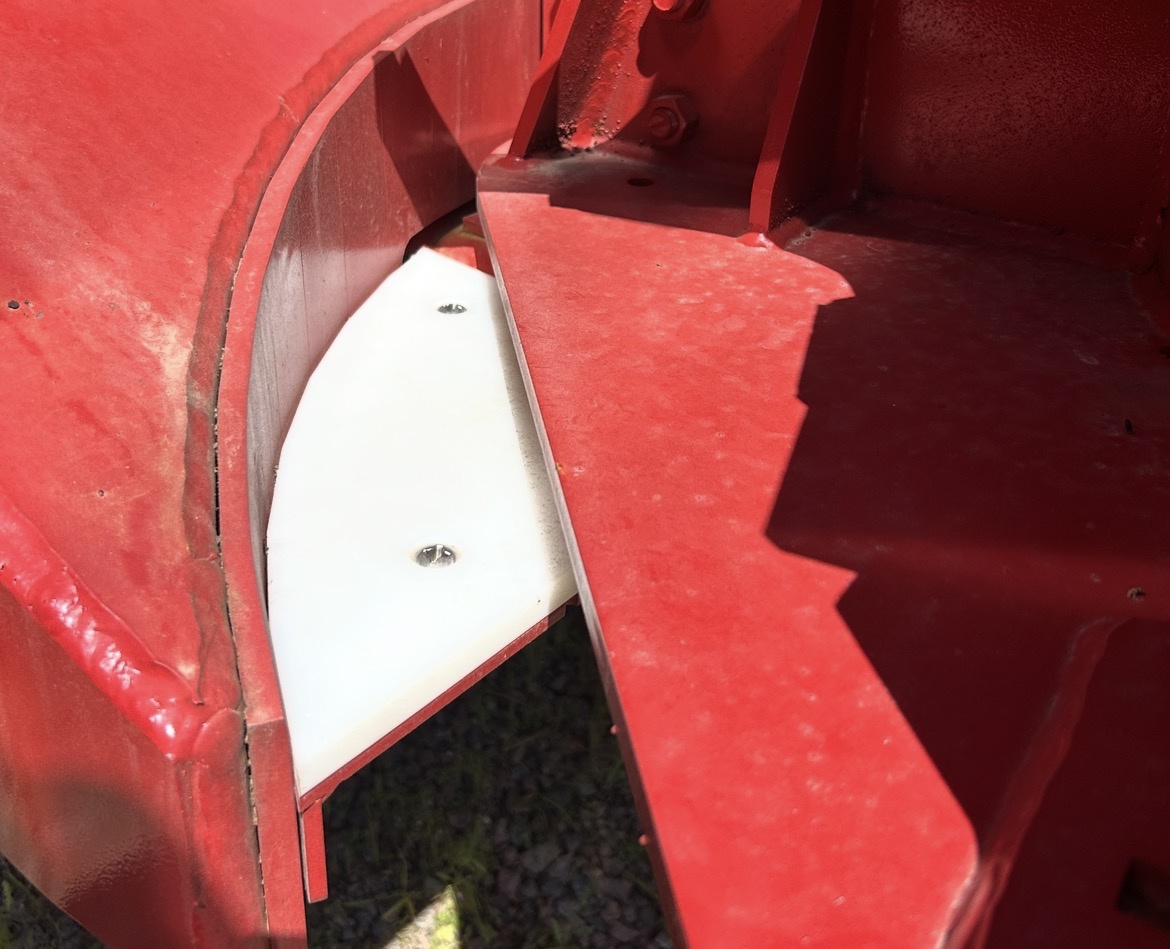

Poly Lined Retention Pads
These poly lined pads under the expellers eliminate streaking in loose manure when spreading at low rates.
CV PTO Standard. 1000 RPM 1 3/4" 20 Spline

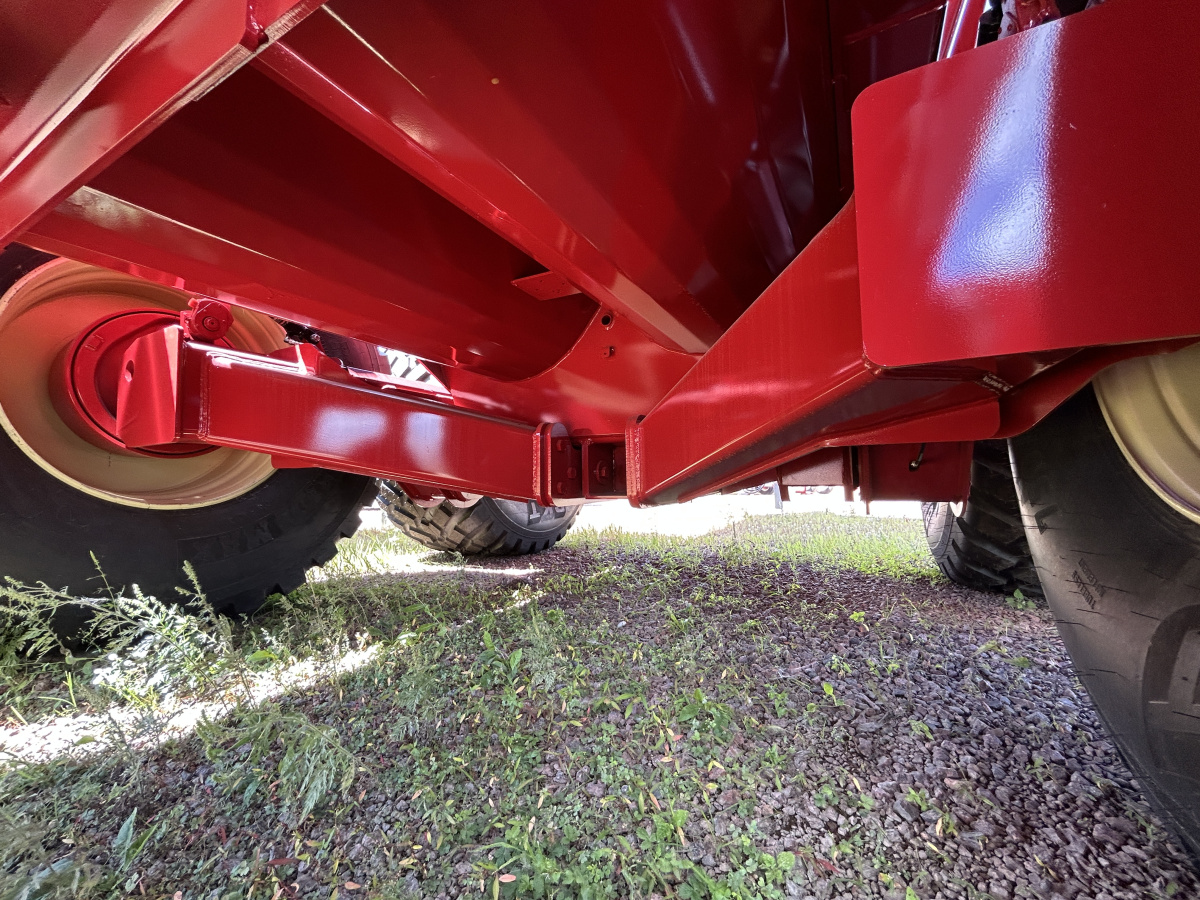

All Meyer V-Spreaders feature a full frame. Stress from hitch, axles and payload is transmitted through this frame system. Take a look at the unibody designs on most V-Spreader!
Robust Axle Design
This massive undercarriage features 5" sleeved spindles, HD oscillating beams with spherical bearing pivots, 2 wheel brakes and lots of floatation.

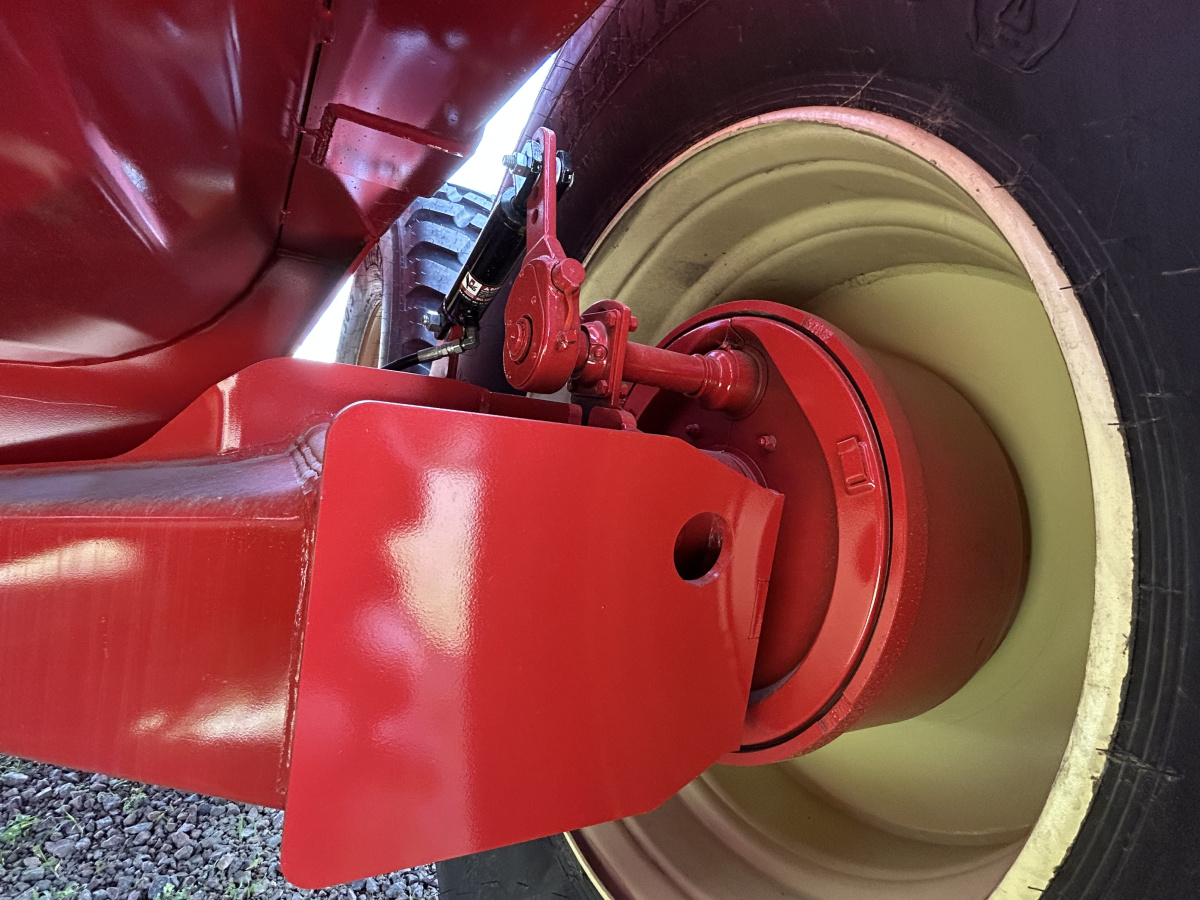

2-Wheel Drum Style Brakes
These rear brakes are standard equipment on the SXI 1050 Model. Hydraulic remote or foot pedal activated.

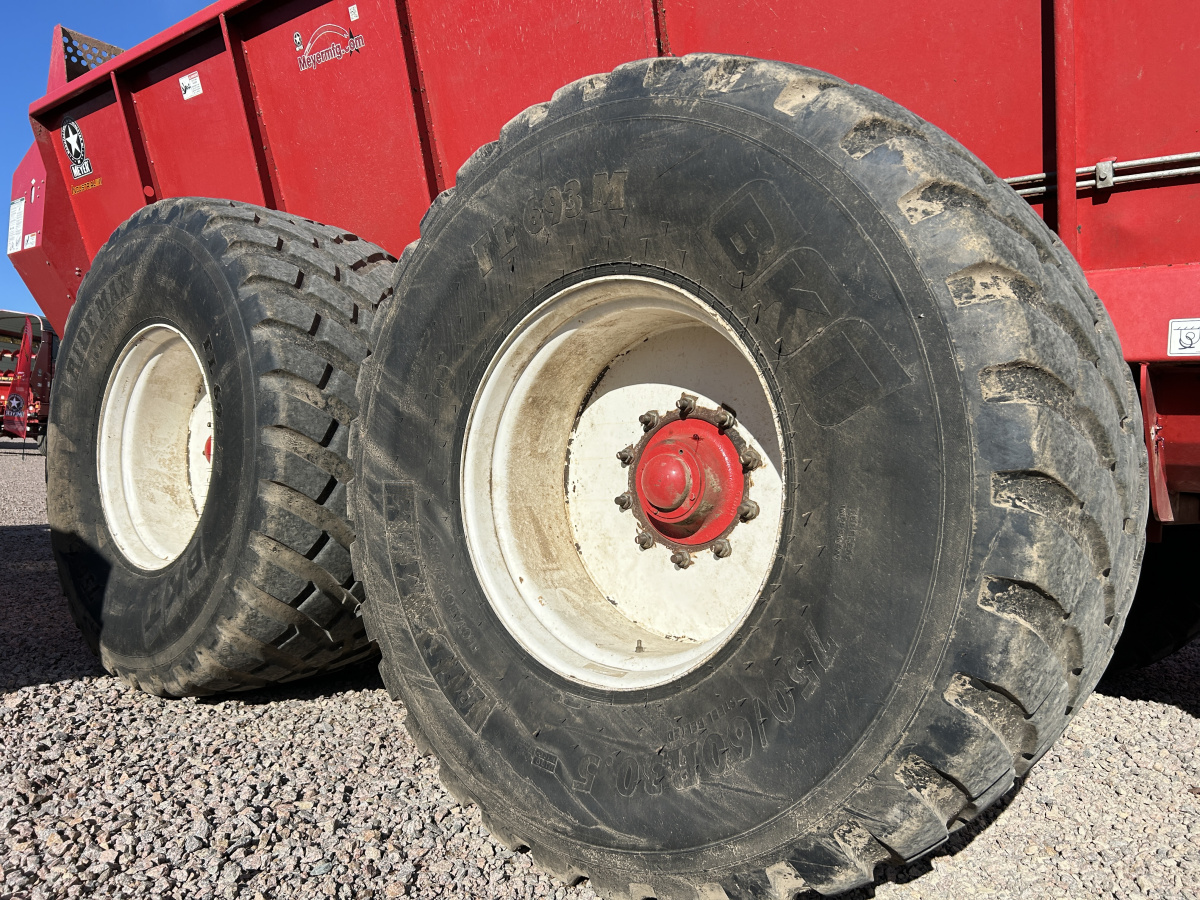

Radial 750/60R30 Tires with High Floatation Axle Package
This impressive Radial tire provides superior floatation when joined with our standard High Floatation Axle package.

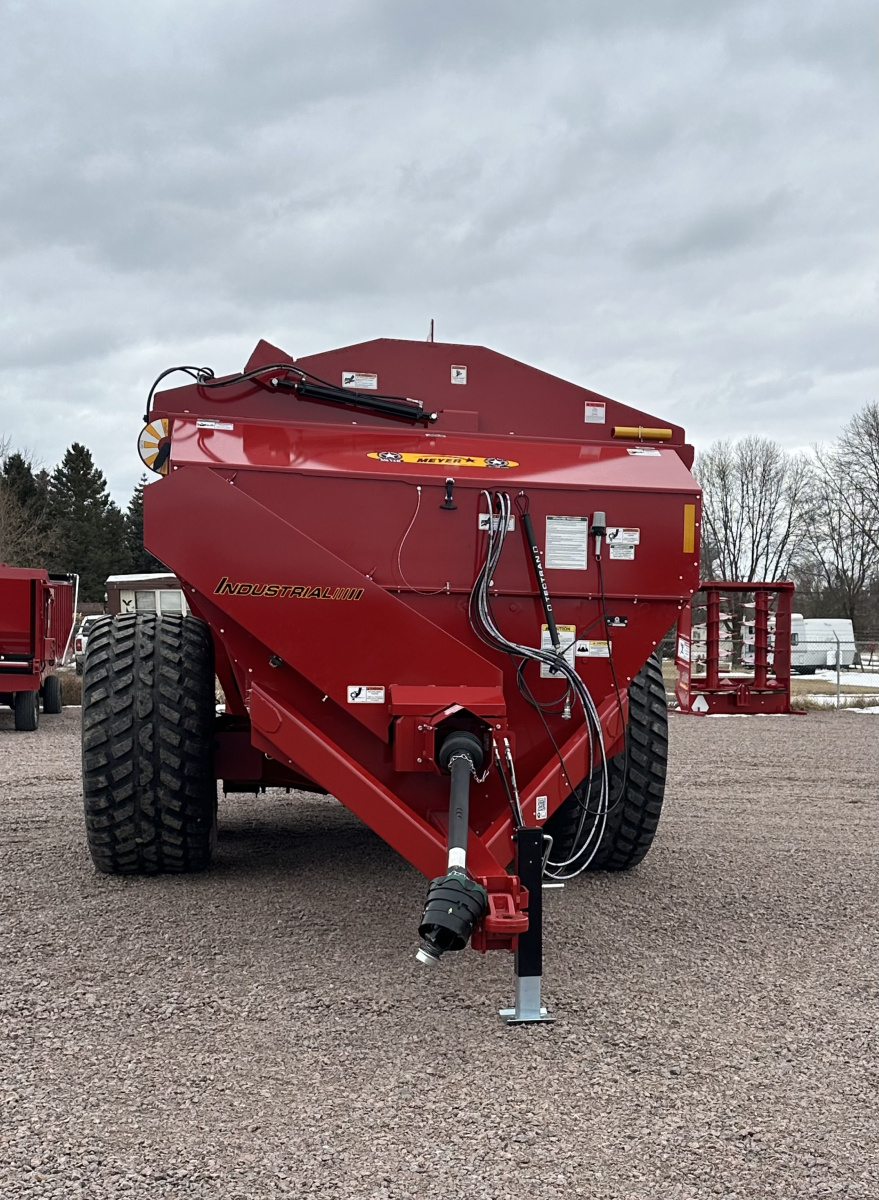

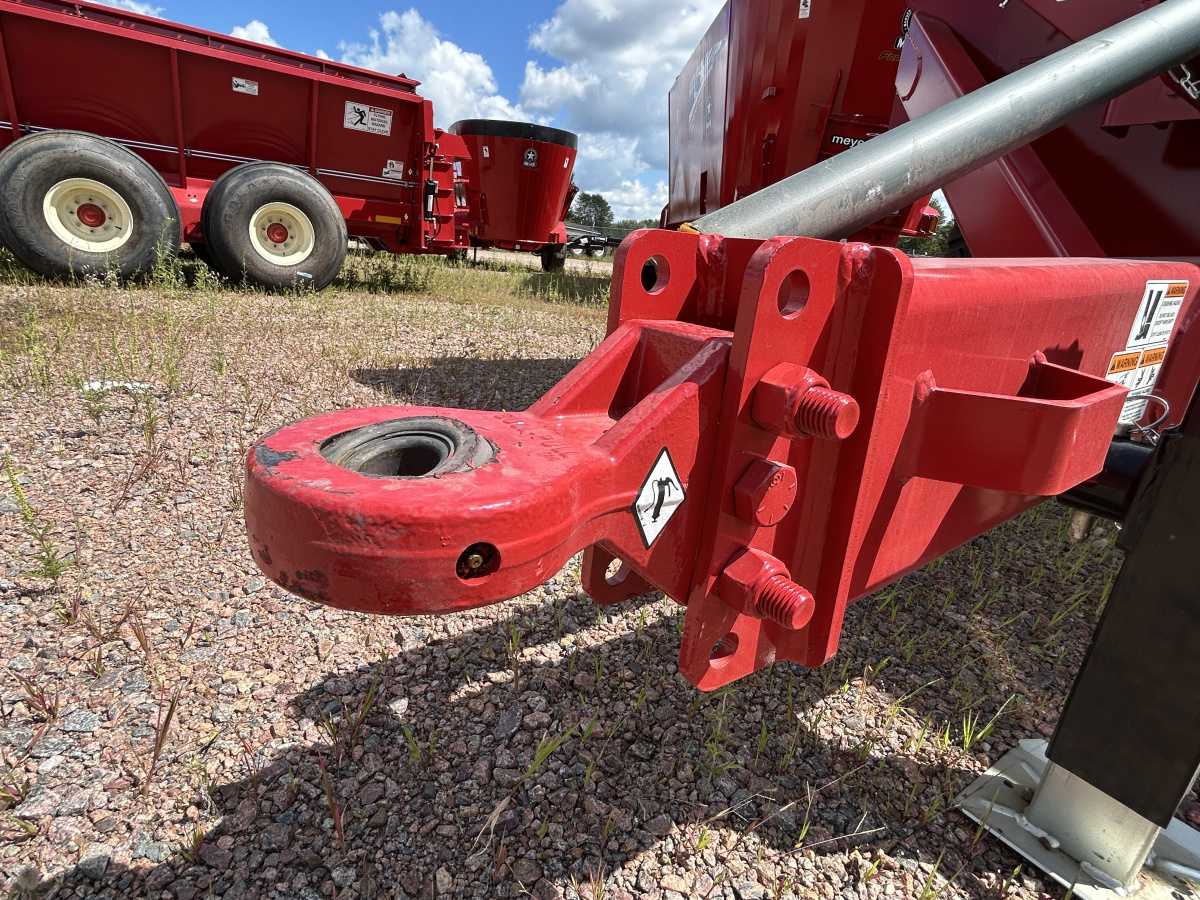

Articulating Ag Hitch Standard
This impressive hitch features a greasable ball-swivel and requires a tractor hammerstrap.
Hydraulic Lid Option
This optional hydraulic lid assembly provides cleaner transportation and less oder. Right or left hinge is availabe and a port hole is standard equipment.
LED turn signal light package standard
