Crop Pro Precision Spreaders
Model # 9724 / 9728 / 9732
The Meyer 9700 Crop Pro Spreader line provides uprecidented accuracy, performance and durability. Higher rate applications like manure are perfect for the vertical FPX200 attachment while the FPX100 attachment is designed for litter, lime or compost where precision low-rate application is desired. Standard features include: HD steel construction, solid poly floor, hyraulic variable-speed geardrive aprons, dual log-chains, high-rise guillotine gate, suspended axles and big floatation!
PHOTOS
FEATURES

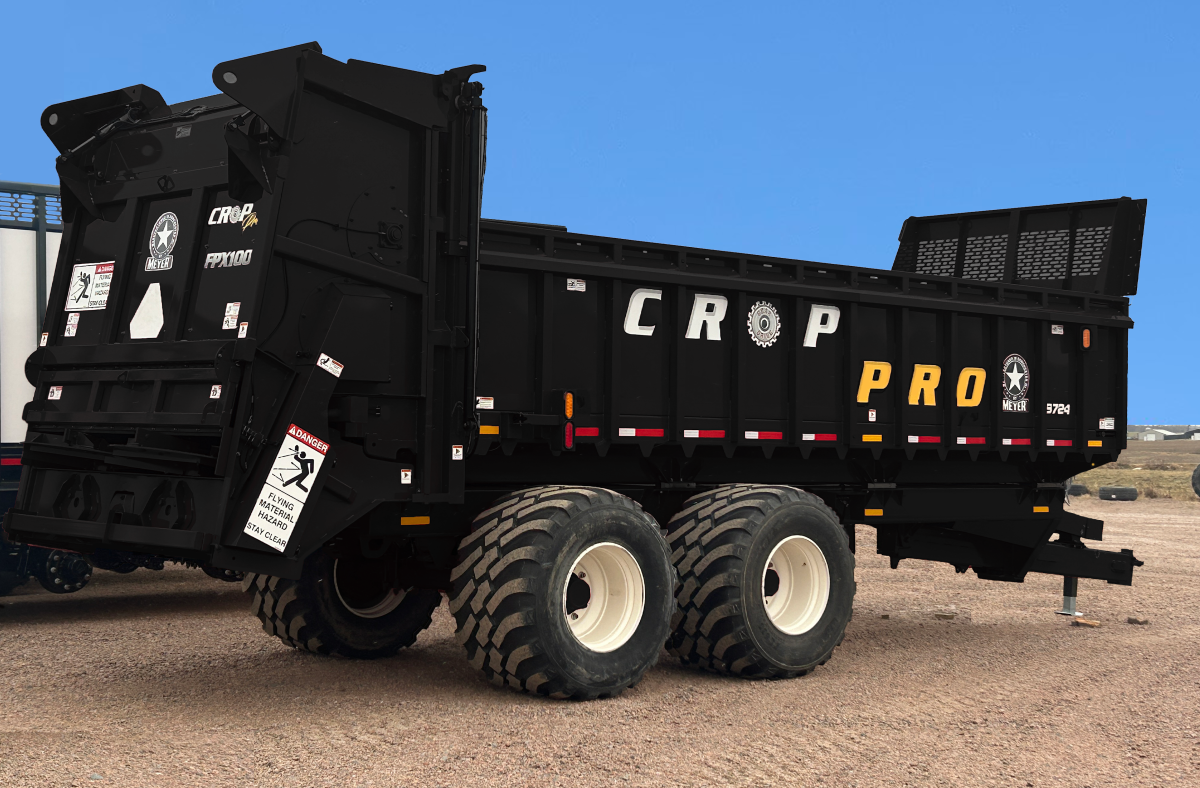

9724 Pull Type Crop Pro
The 9724 Tandem Crop Pro feature capacities ranging from 684 cu ft struck (no ext) to 1,360 cu ft heaped (w/24" ext).

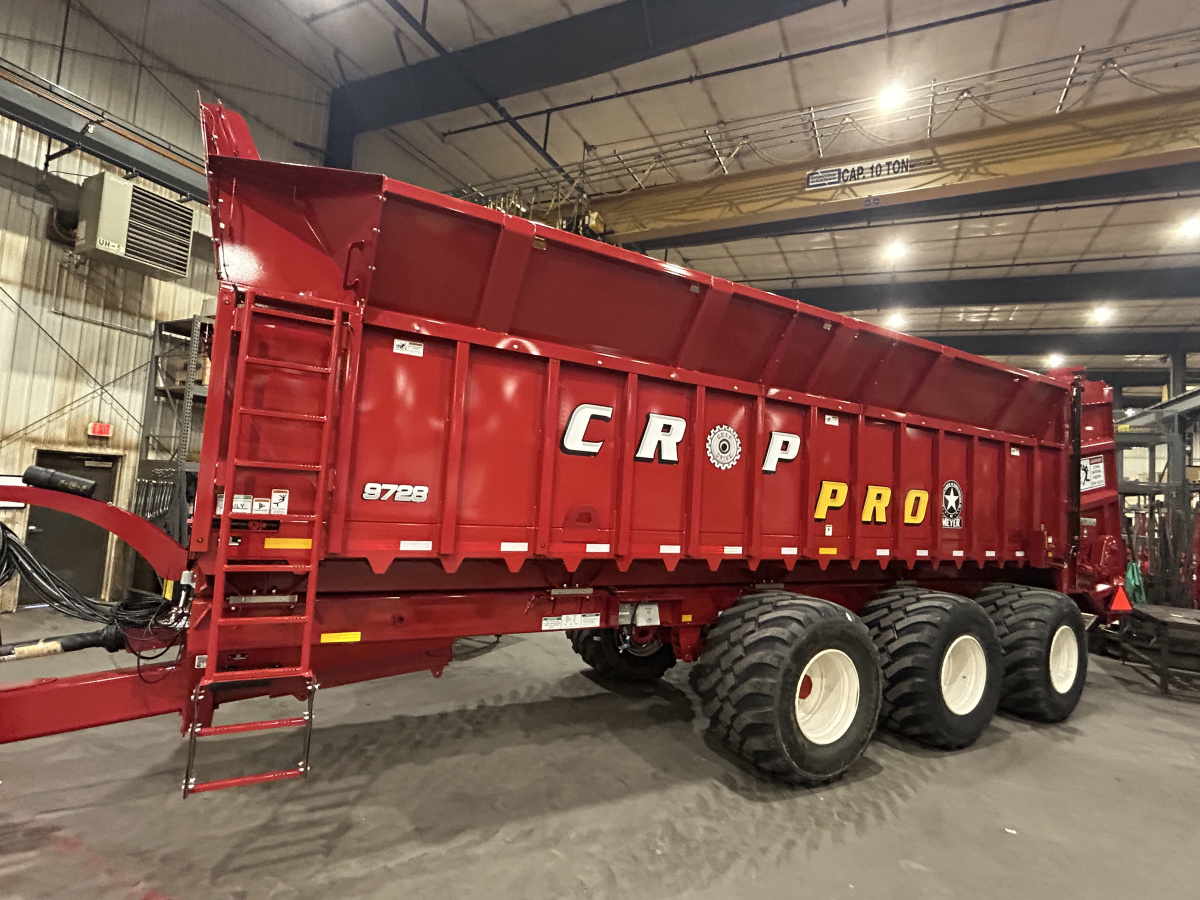

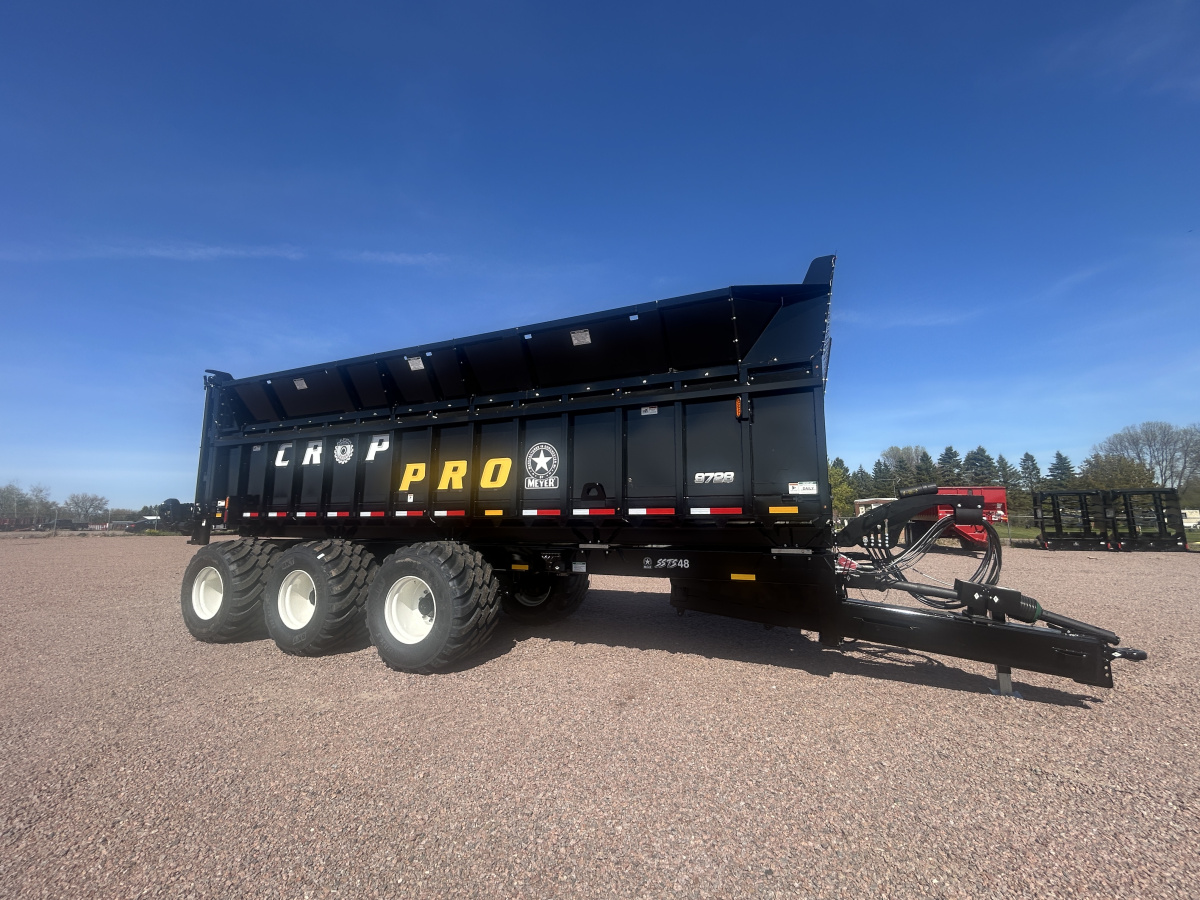

9728 Pull Type Crop Pro
The 9728 Tridem or Quad Axle Crop Pro offer capacities ranging from 800 cu ft struck (no ext) to 1,590 cu ft heaped (w/24" ext). *note all 9700 Crop Pro models are currently black in color.
9732 Pull Type Crop Pro
The 9732 Tridem or Quad Axle Crop Pro offer capacities ranging from 915 cu ft struck (no ext) to 1,820 cu ft heaped (w/24" ext).
Quality Performance

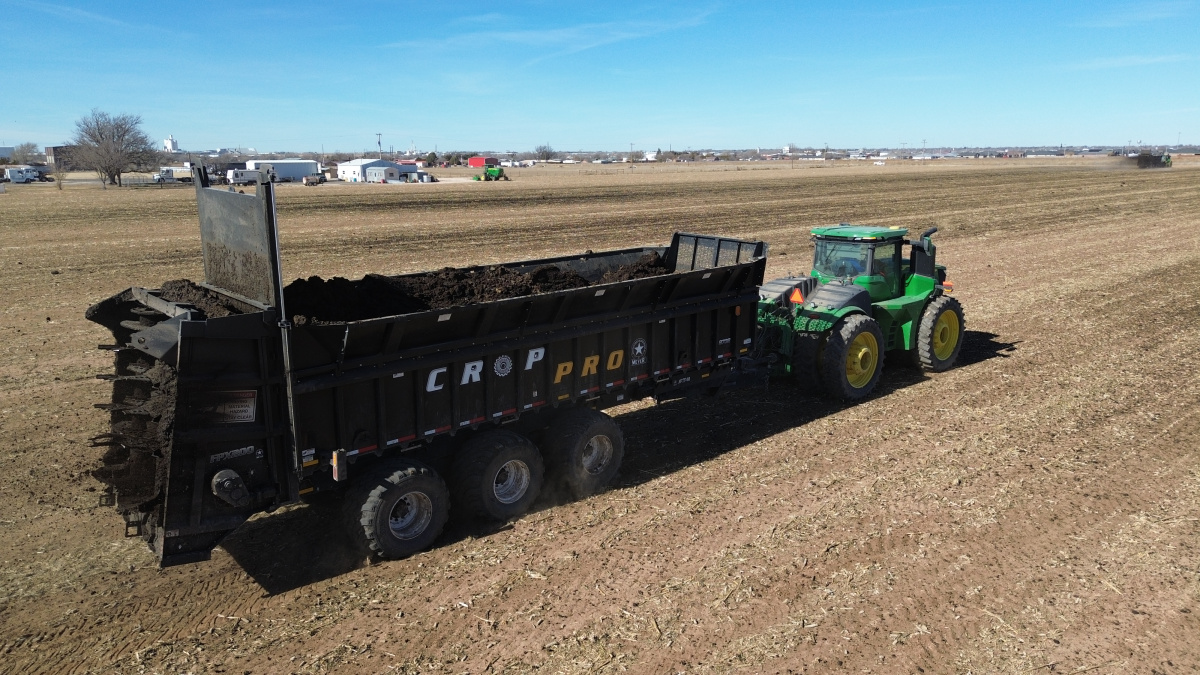

Maximize the value of your manure, litter, lime or compost with a Meyer Crop Pro! Meyer offers two spreading attachments: FPX100 Combination & FPX200 Vertical to match your needs.
Heavy, 10 Gauge Steel Body
The Crop Pro features a robust body & frame design, when mated with our tubular chassis and suspended axle system, you can be assured of years of service!

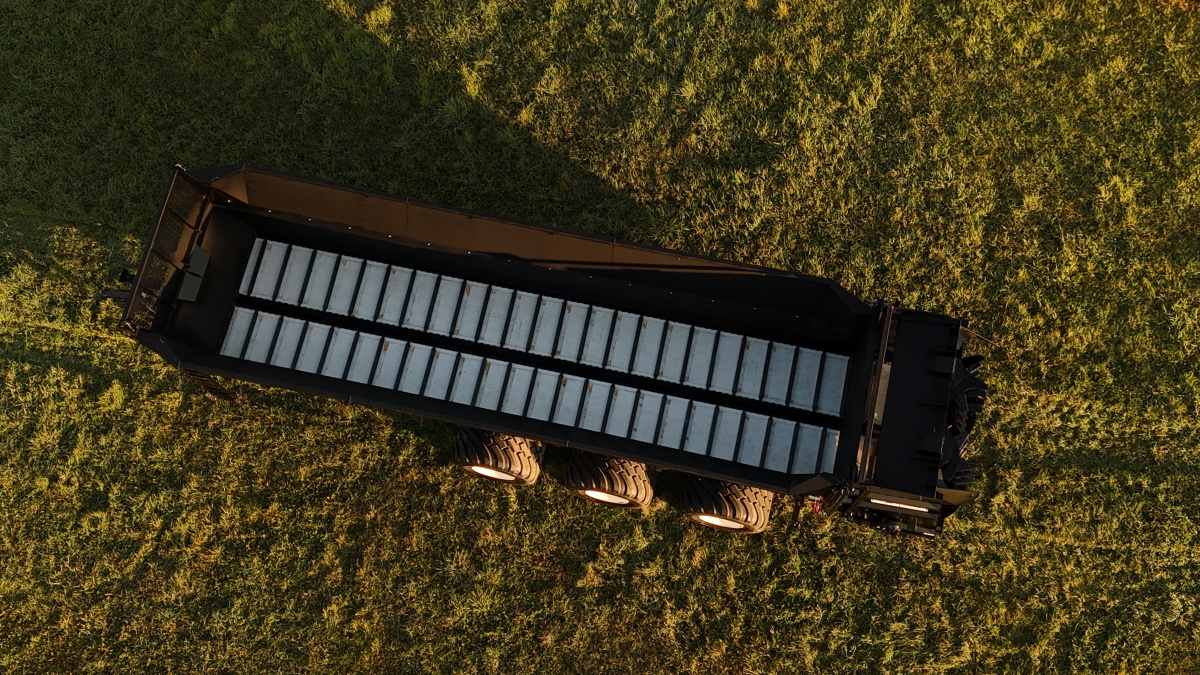

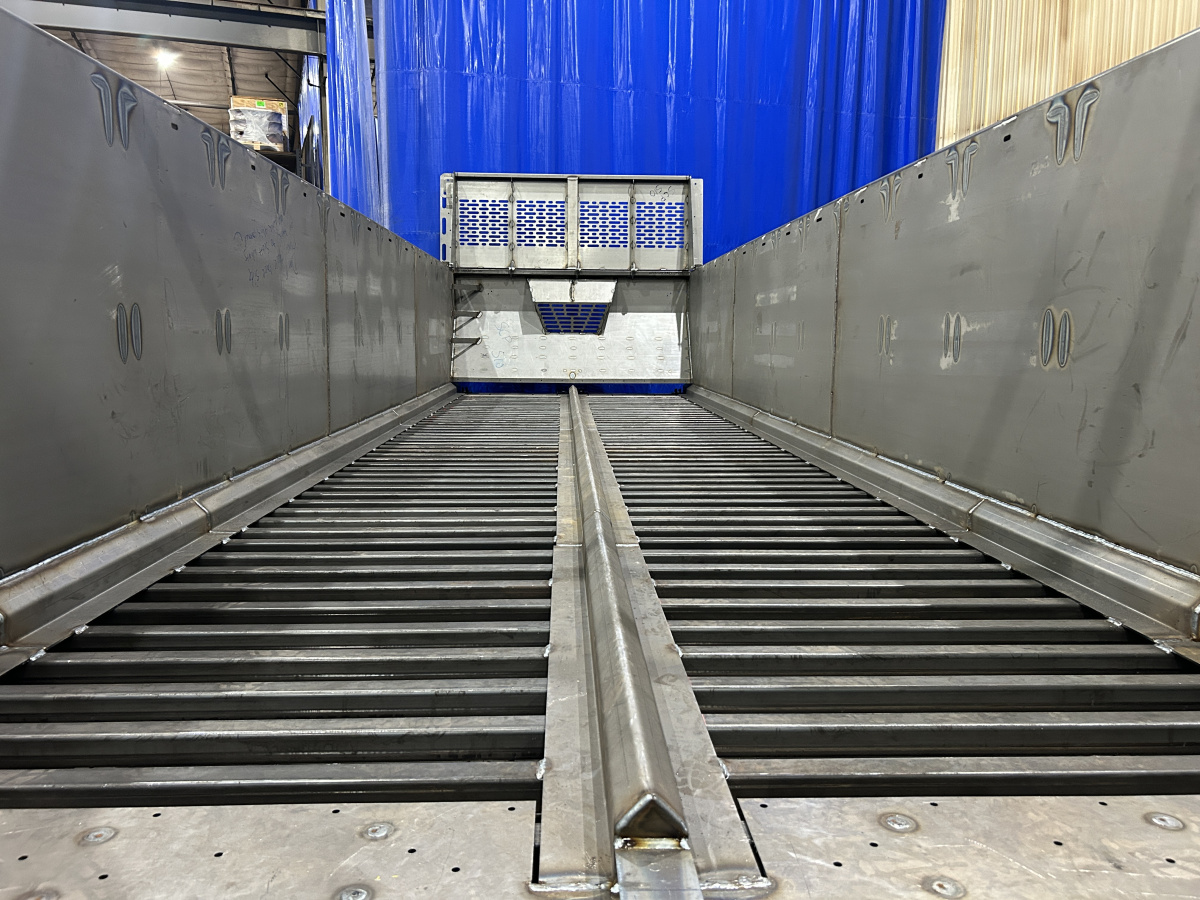

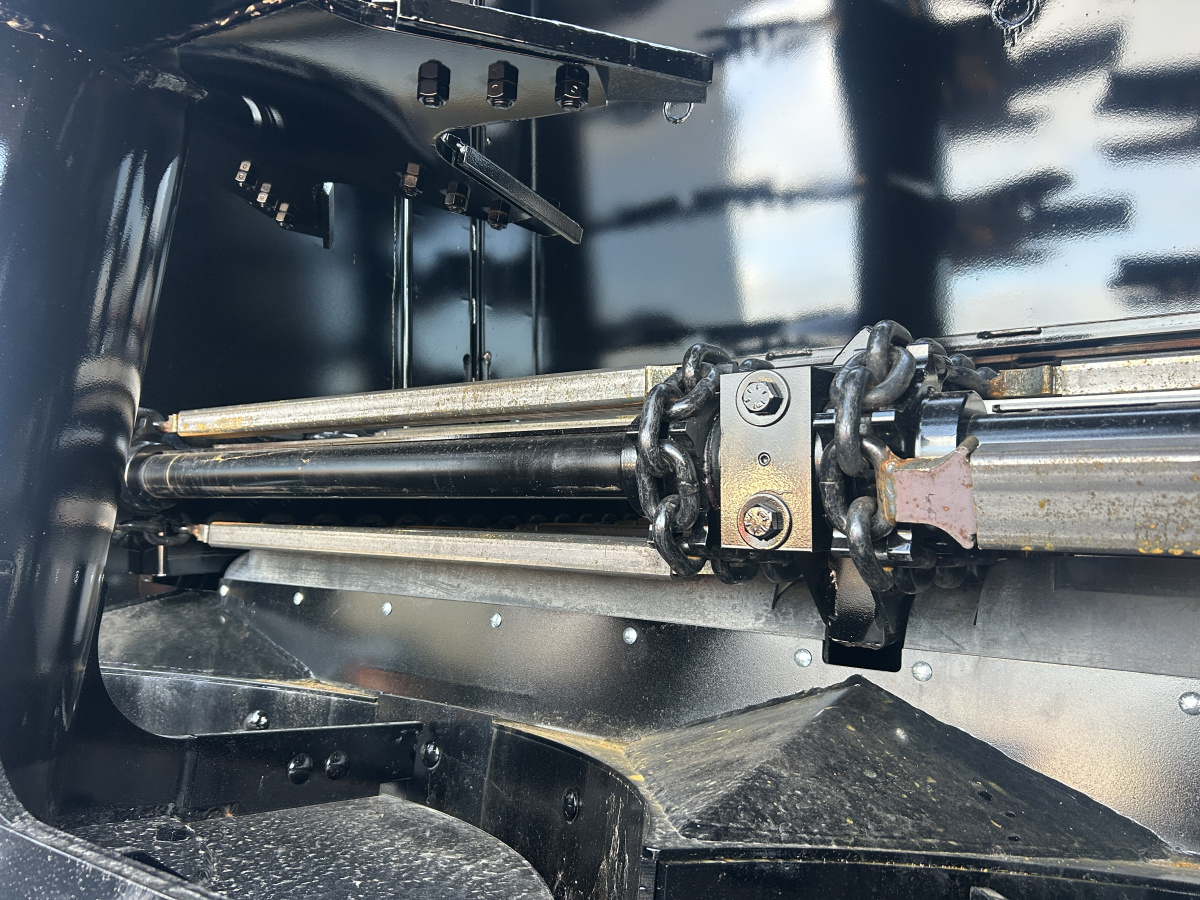

Dual, Grade 100 Log-Chain Apron
These massive dual, log-chain aprons offer strength beyond compare. They also feature tubular slats for a robust design and quick-change ability.

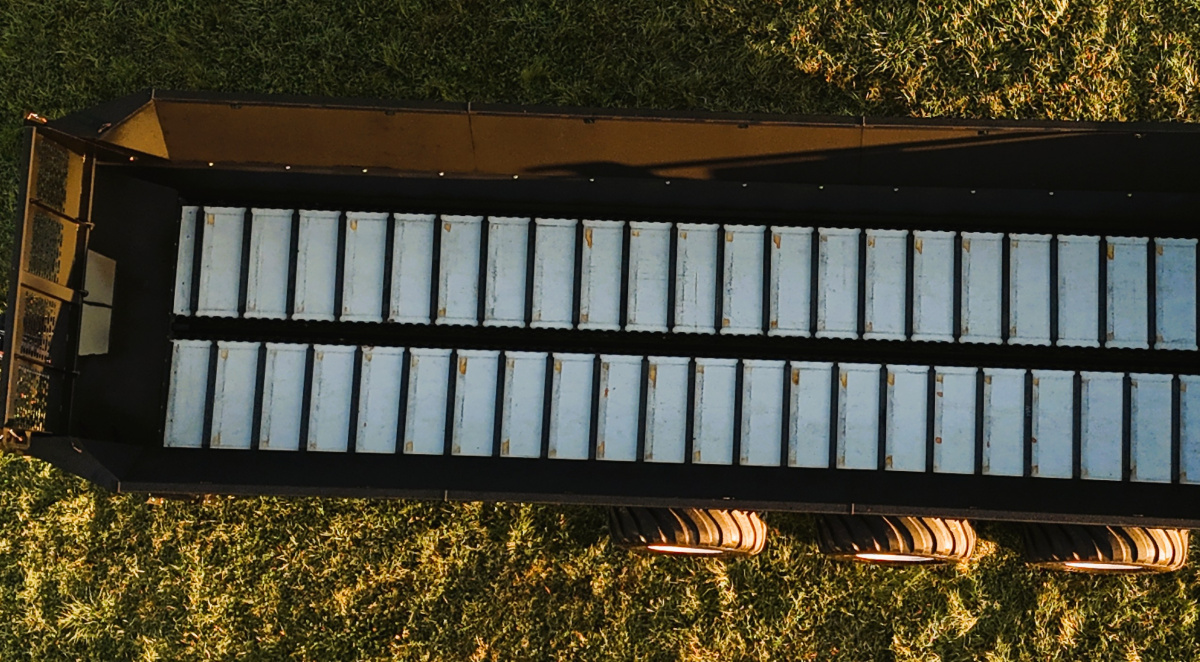

Solid Poly Floor
This solid, virgin poly floor reduces drag and increases unloading speed all while making life easier on your spreader drive system. This floor is also supported by a intense, steel support system to handle heavy loads!

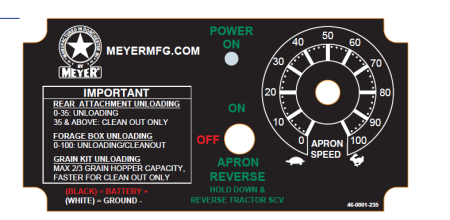

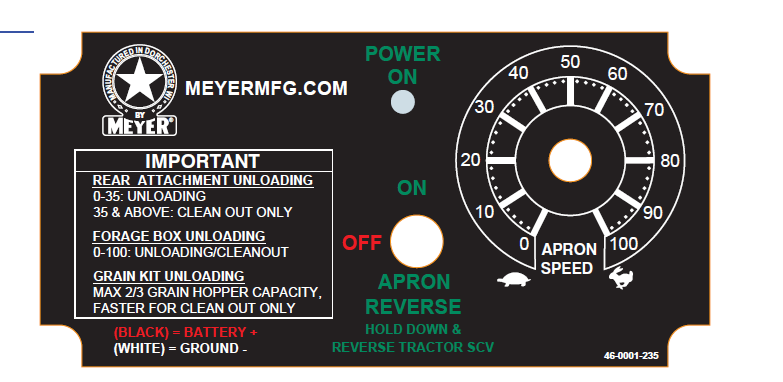

Cab-Control Apron Drive - Variable Speed (with Reverse)!
The 9700 Crop Pro comes standard with this handy cab-control box for simple operation of the variable speed apron and in-cab reversing feature.
Hydraulic Geardrive
Hydraulic Geardrive Technology powers the main apron drive shaft, not roller chain reduction like most spreaders. Accurate application rates and simple maintence are the benefits. Single HD drive on 9724 / Dual HD drive on 9728 & 9732 models.

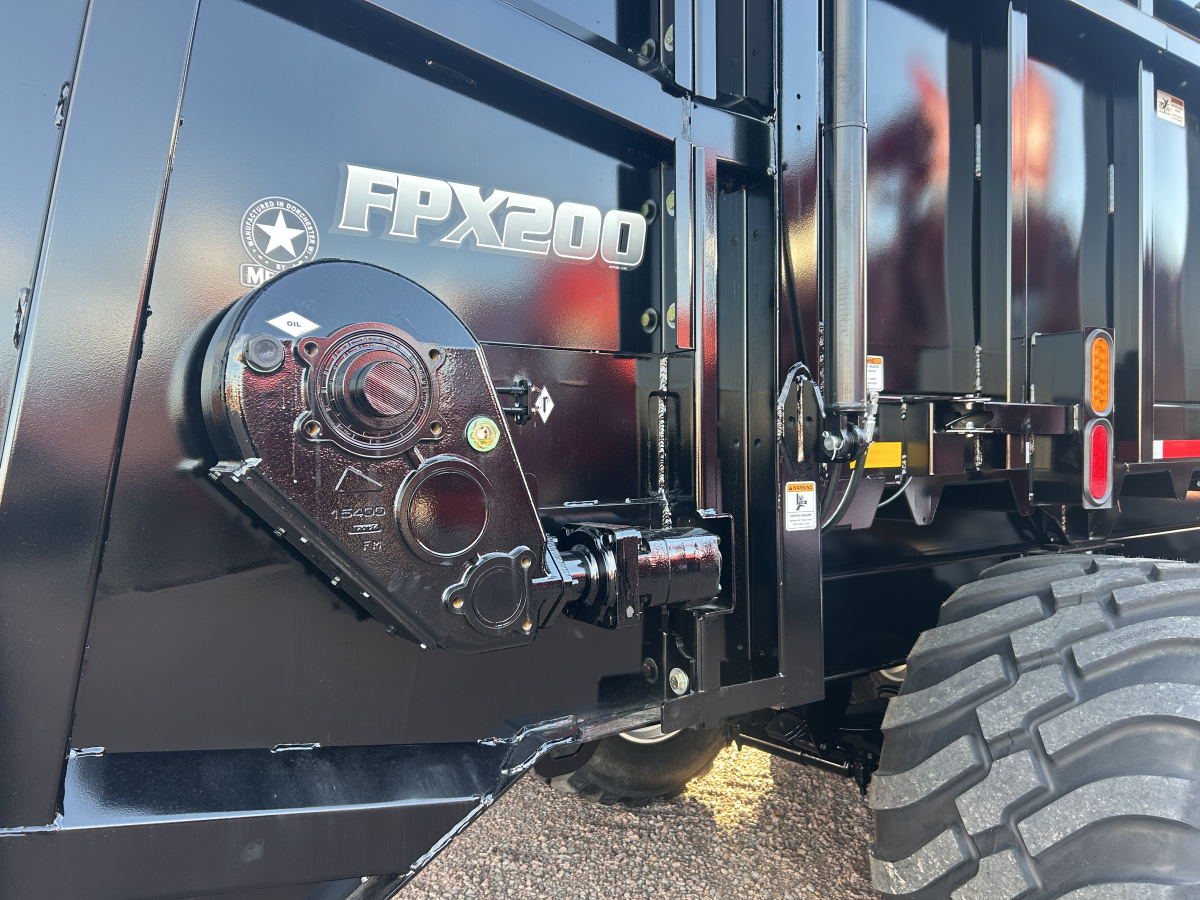

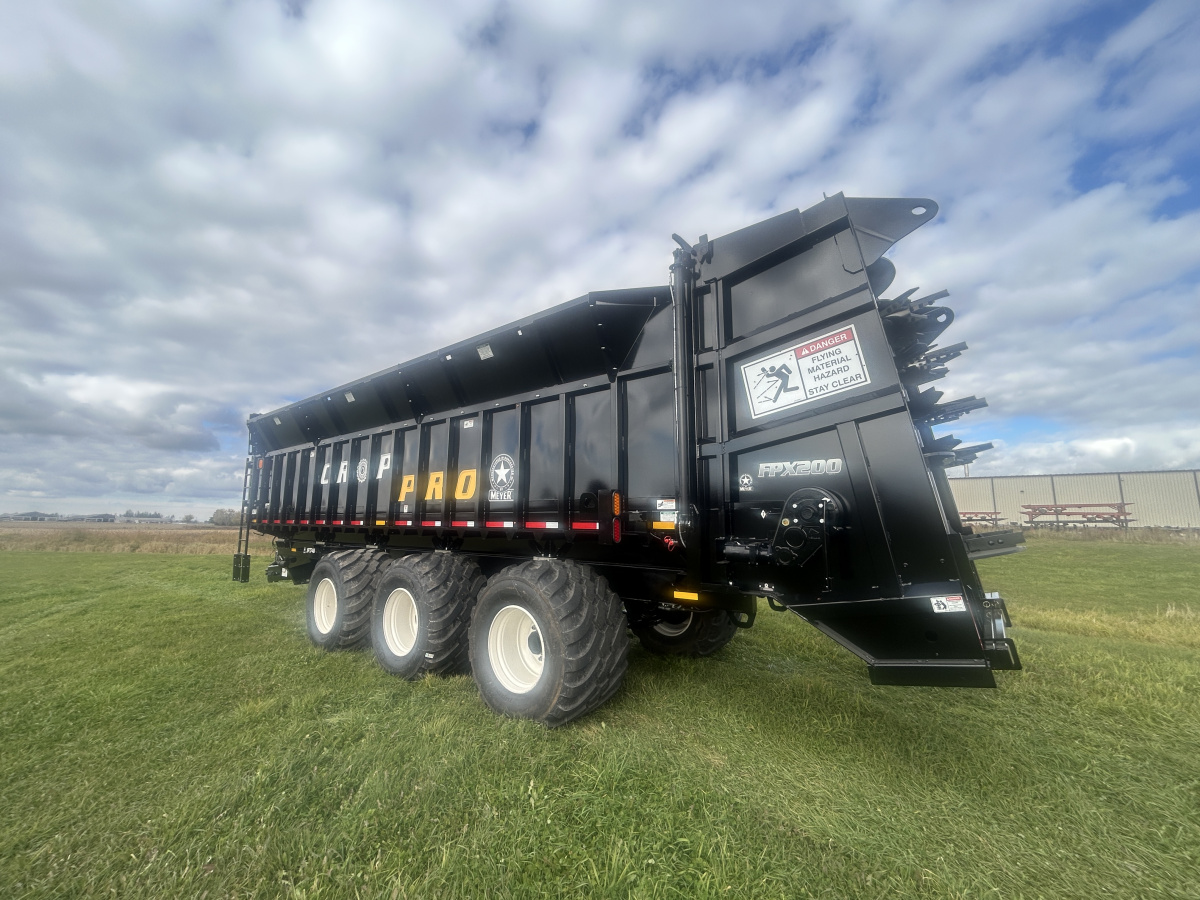

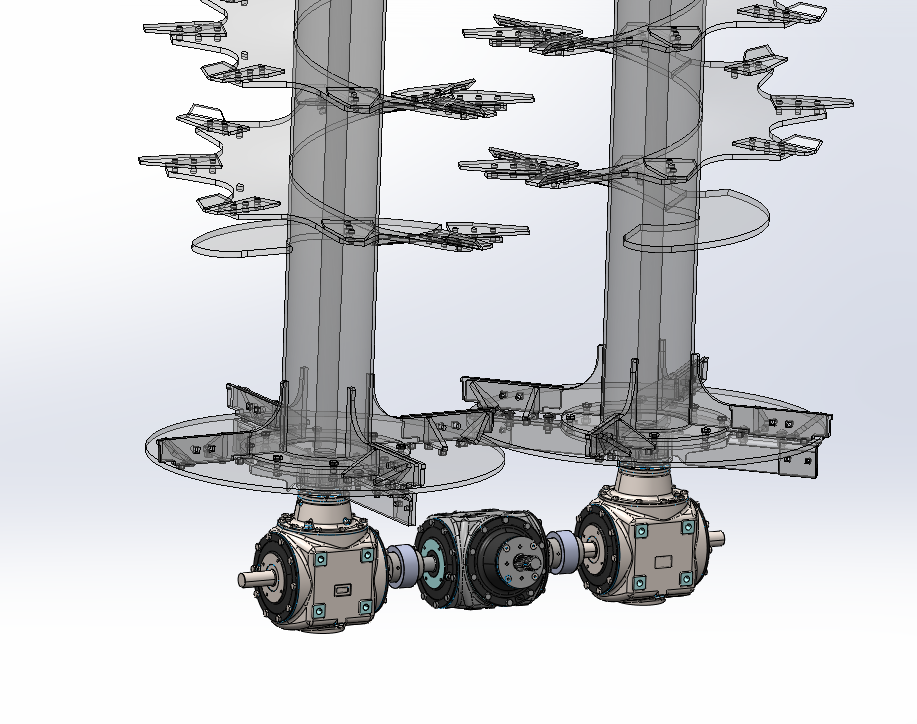

FPX200 Vertical Expeller Attachment
When medium and high rate spreading is desired, the FPX200 Vertical Spreading Attachment is there to attack. This aggressive beater system features HD balanced vertical expellers, a massive monobox drive for reduced maintenance and a robust frame. It is easily removed for conversion to FPX100 or silage hauling/stockpiling with no attachment.

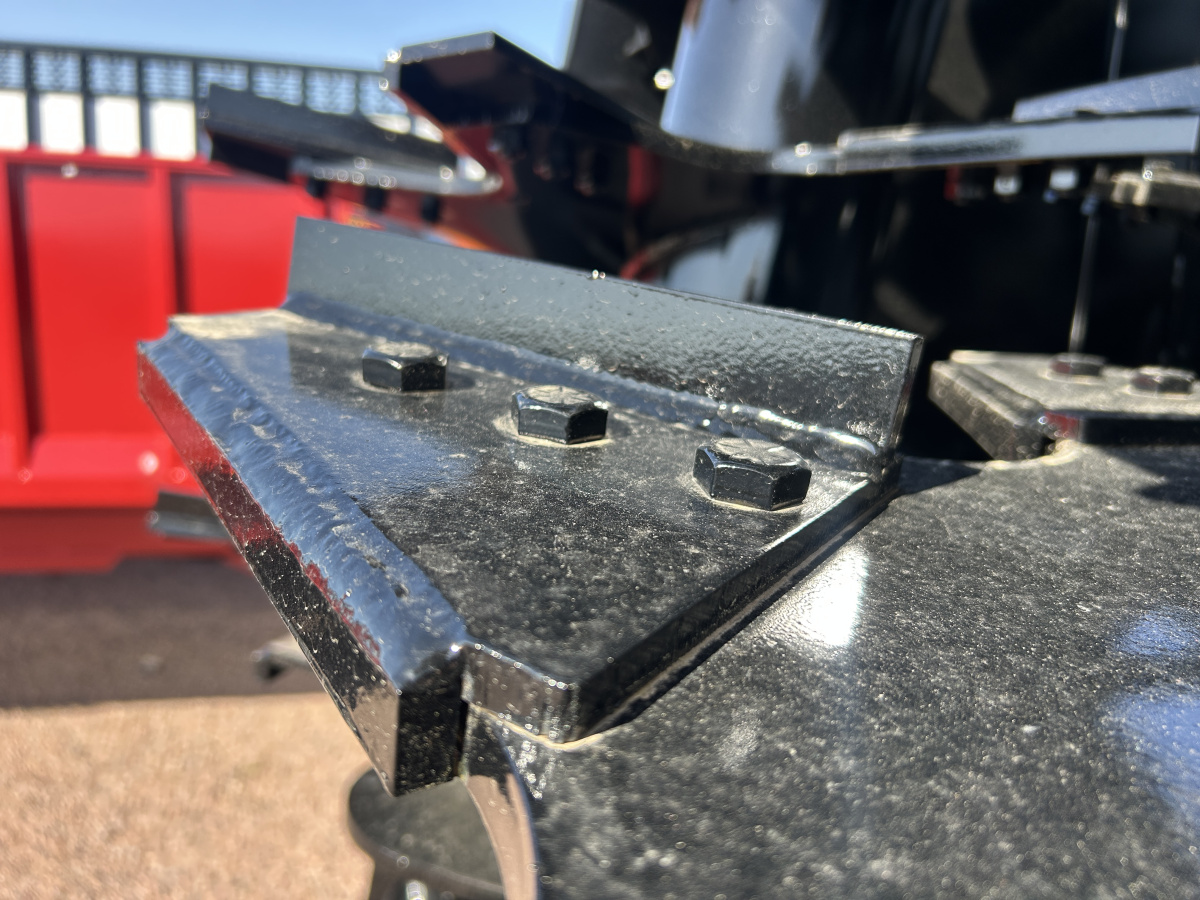

High Wear Paddle Package (optional)
This popular, bolt-on paddle package offers adding protection of your expeller flighting along with increased performance. See the lead edge protection design!

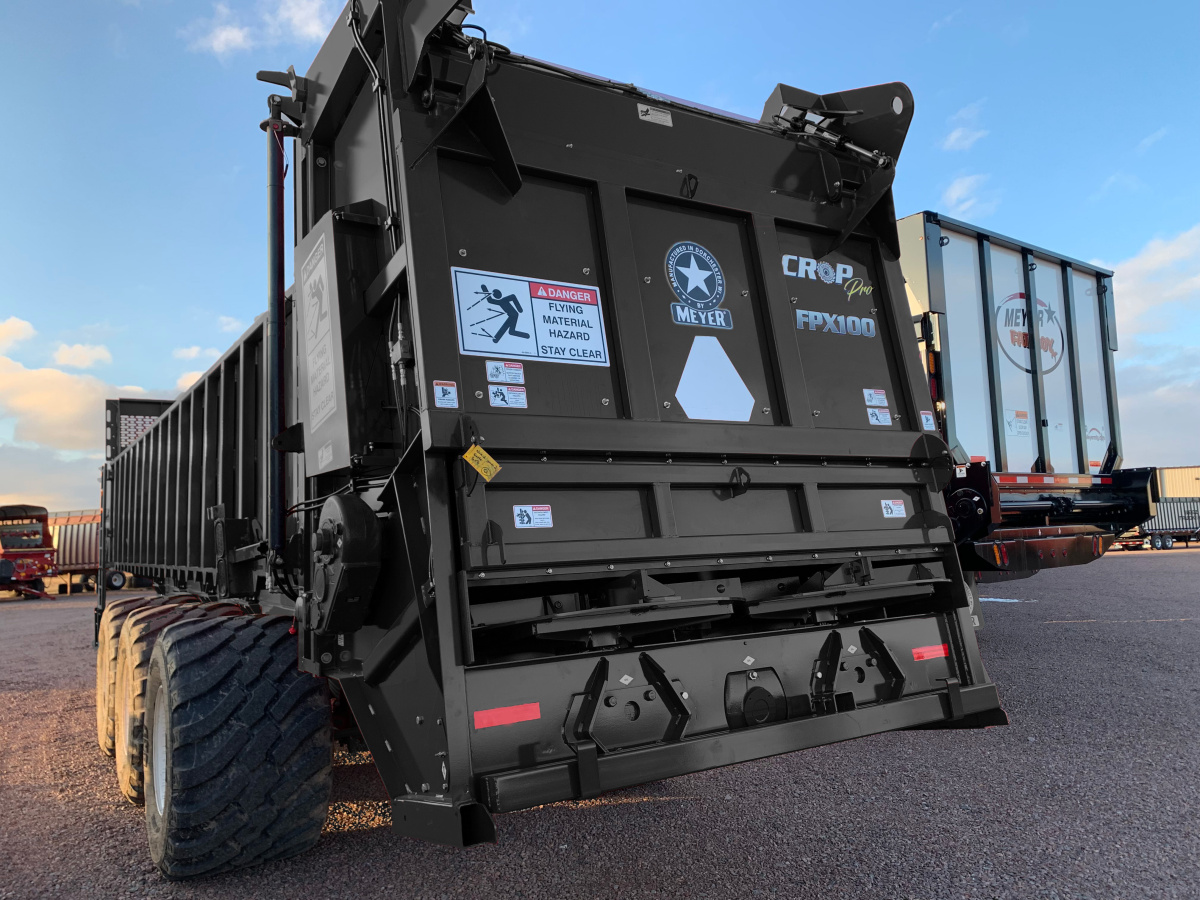

FPX100 Combination Attachment
This FPX100 Spreading Attachment combined with a guillotine tailgate meter material to the ground with amazing accuracy. Low rates - no problem!

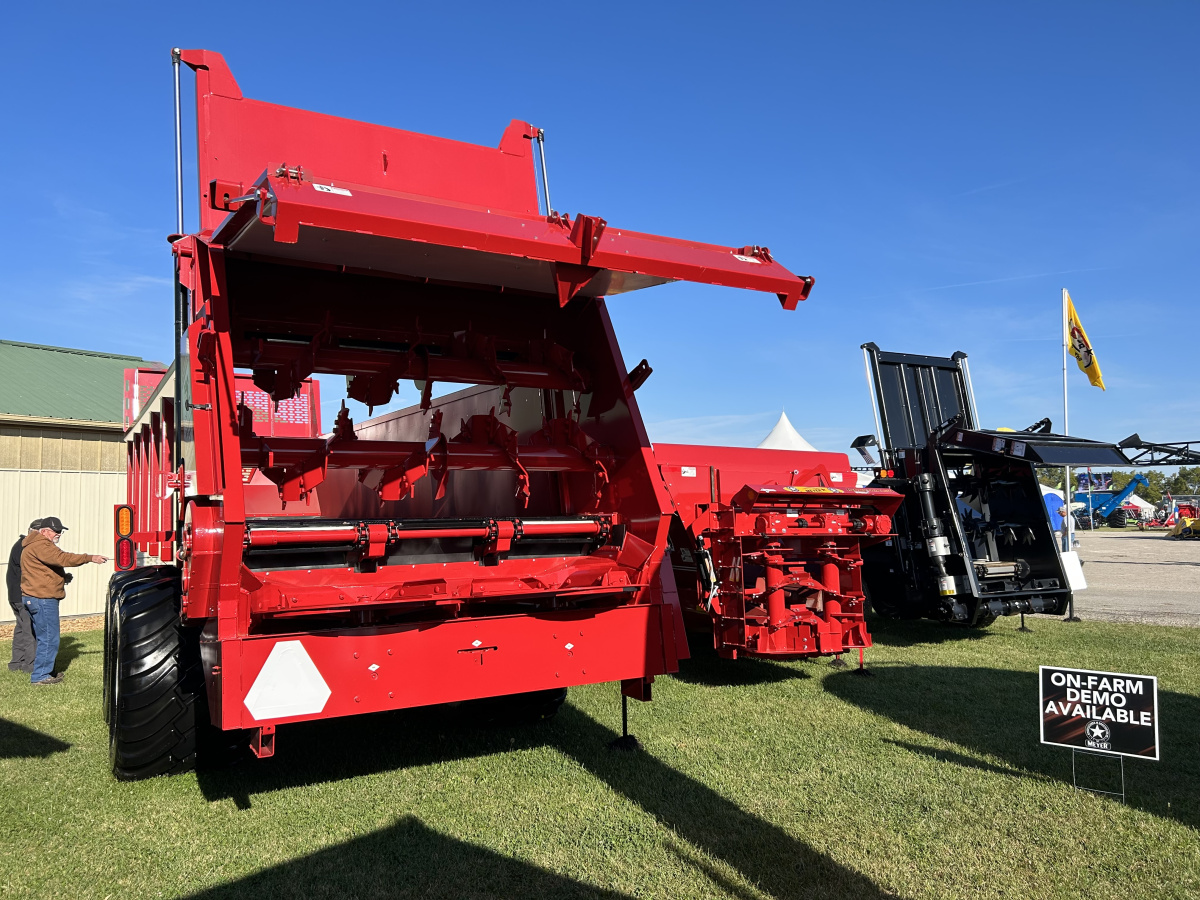

Hydraulic-Lifting Service Gate
This hydraulic-lift service door is standard on the FPX100 Attachement. It offers quick access to cross beaters for service & cleaning.
(FPX1 pictured on 9600, 9700 works in a very similar fashion)
(FPX1 pictured on 9600, 9700 works in a very similar fashion)
Trip Door
This shear-protected trip door at the lower portion of the spreading enclosure protects the FPX100 Discharge Attachment by allowing some forgiveness for foreign objects and certain frozen material. It also offers adjustment for spread pattern tuning.
Guillotine Door System
A massive, reinforced guillotine door helps control material flow and avalanching assuring low rate accuracy. Works with both our FPX100 and FPX200 Attachments.

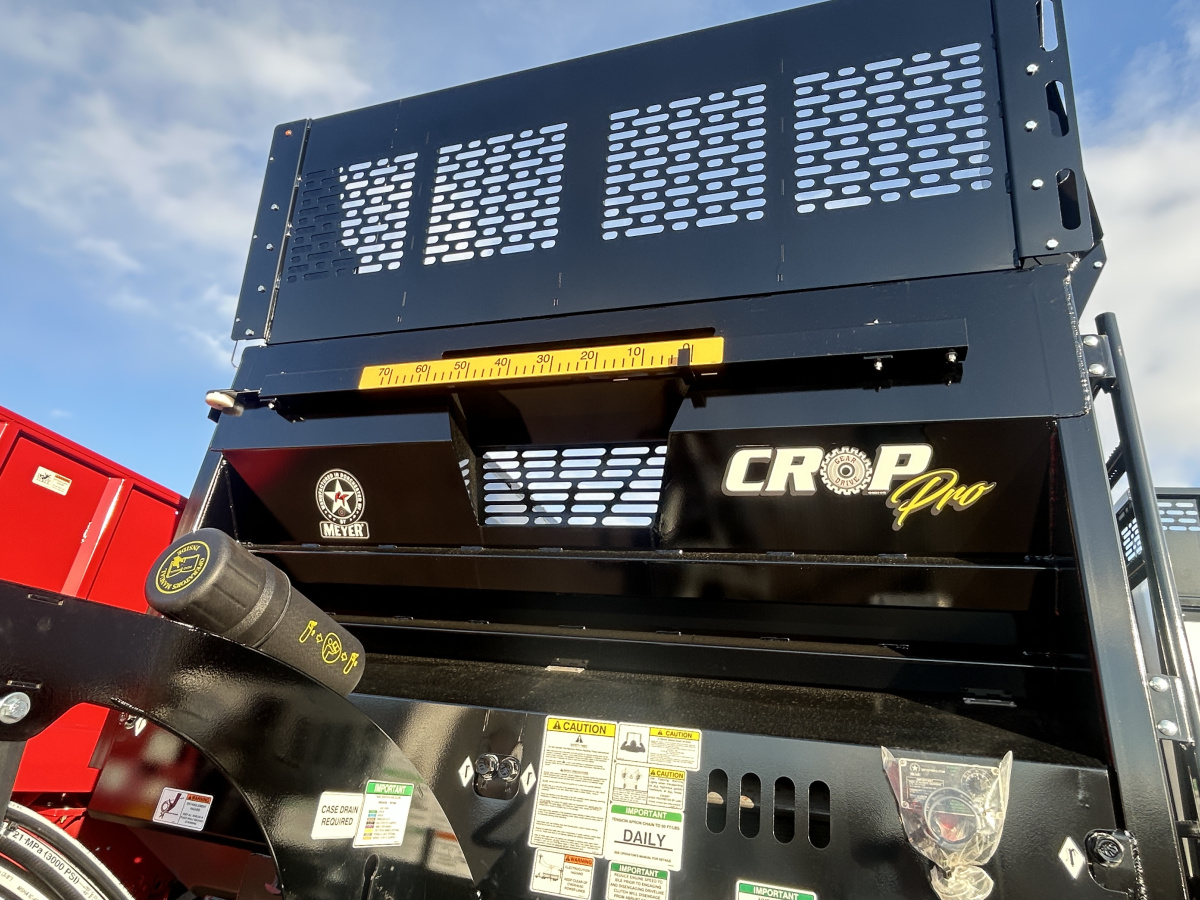

Tailgate Indicator Feature
This mechanical tailgate indicator allows quick, convenient awareness of tailgate position. 9700 models equipped with Athene Rate Control feature a electonic tailgate indicator instead of the mechanical version. The electronic version displays on your tractor's VT/UT.

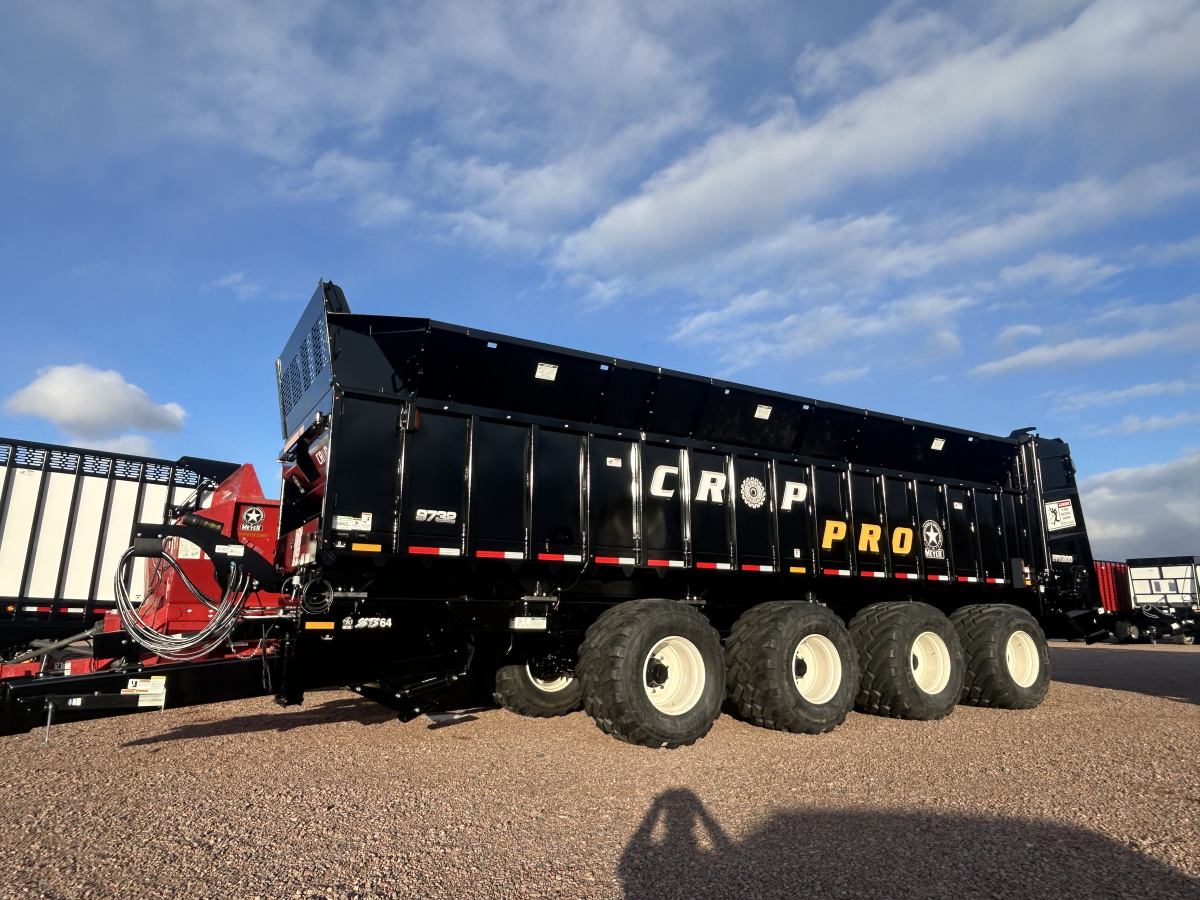

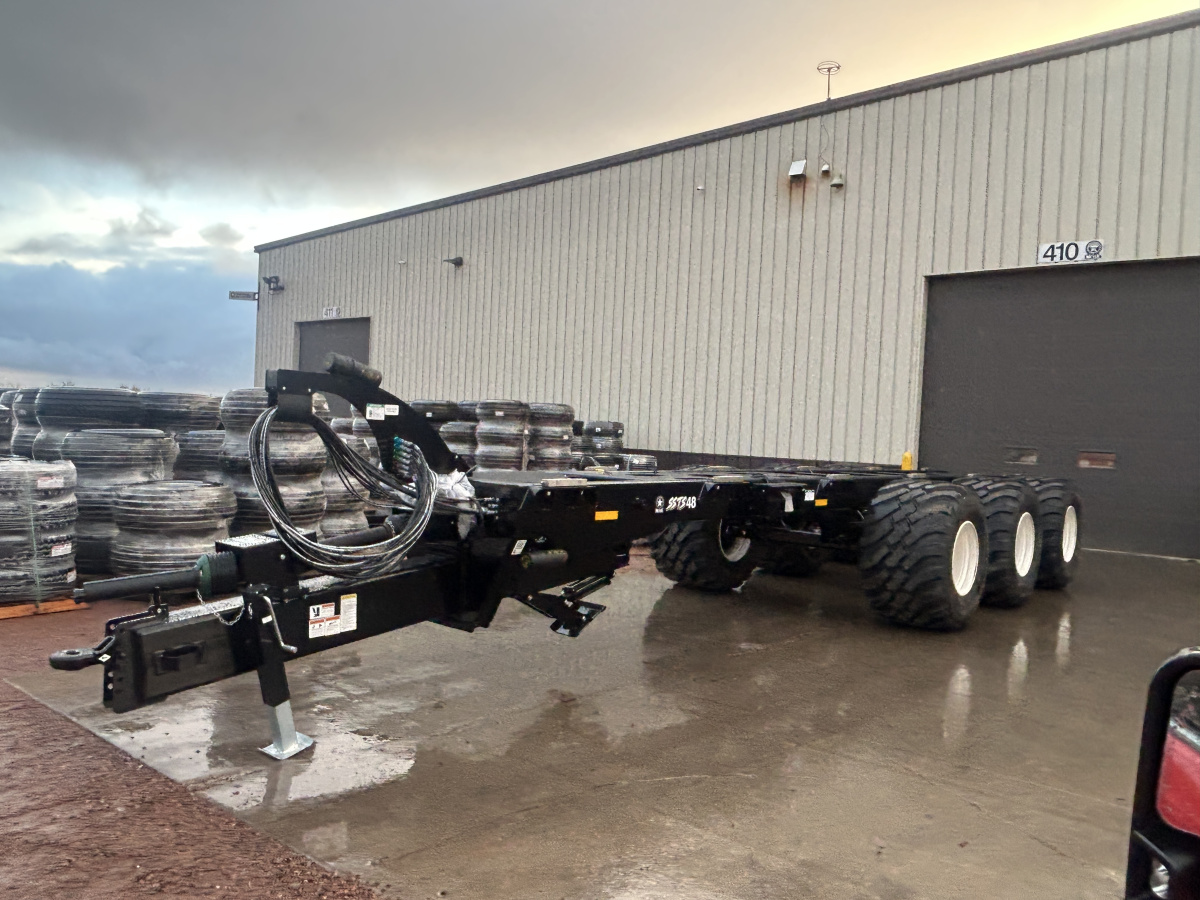

9728 and 9732 Chassis Options

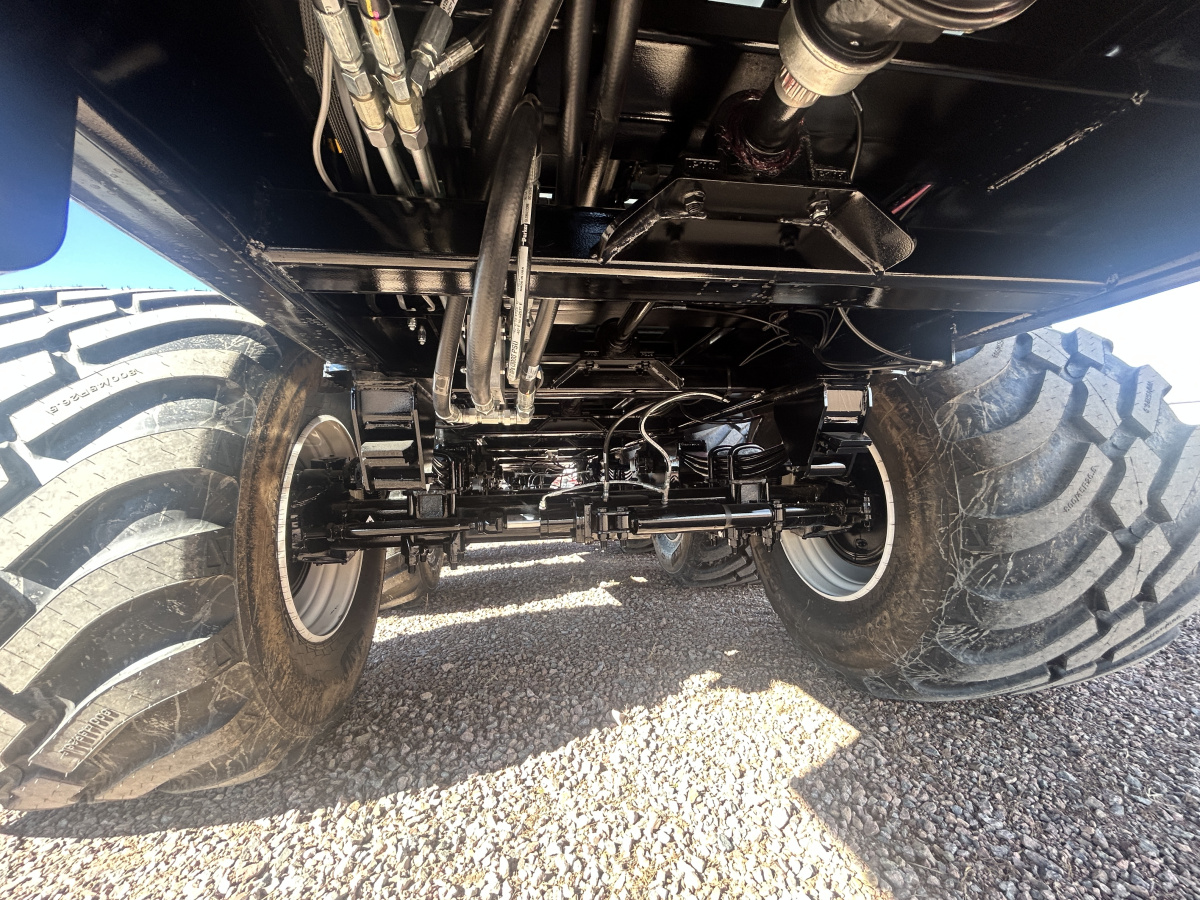

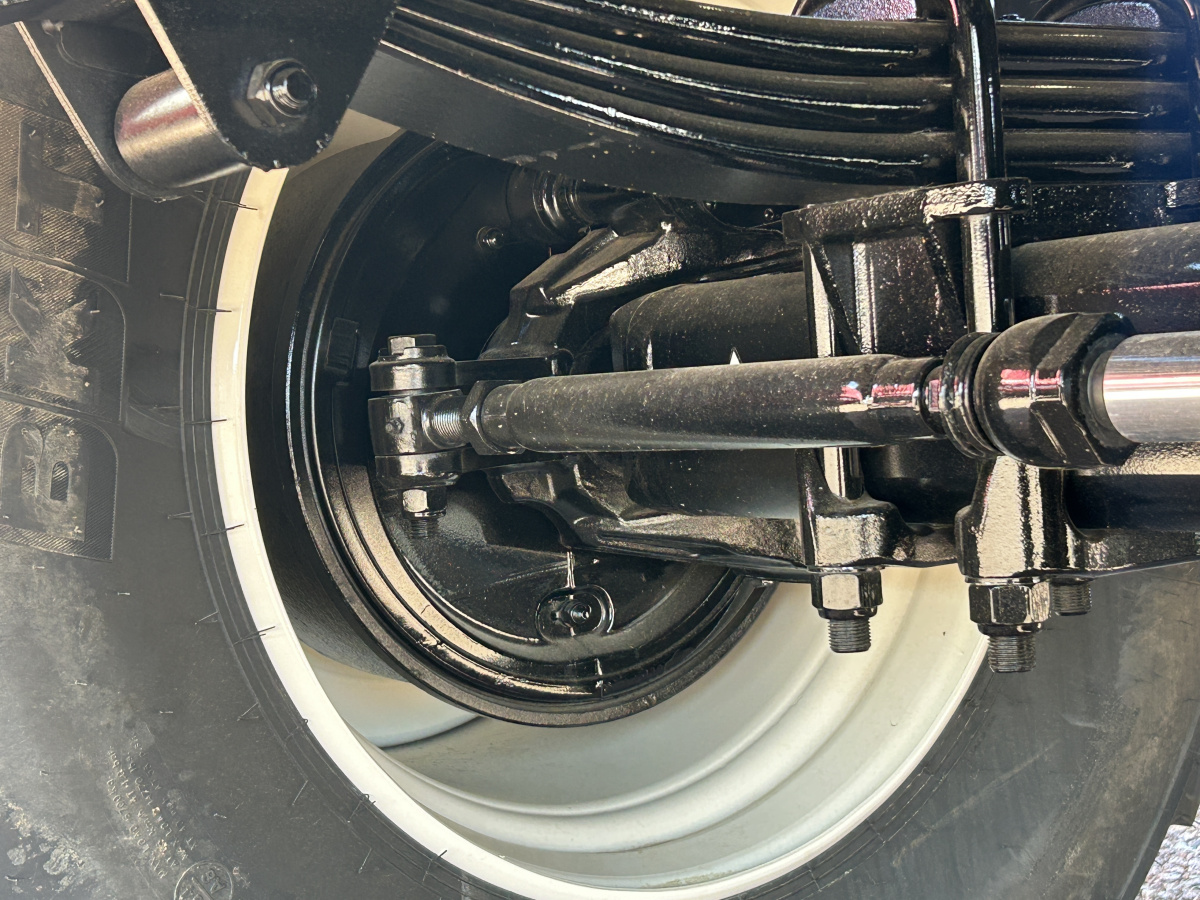

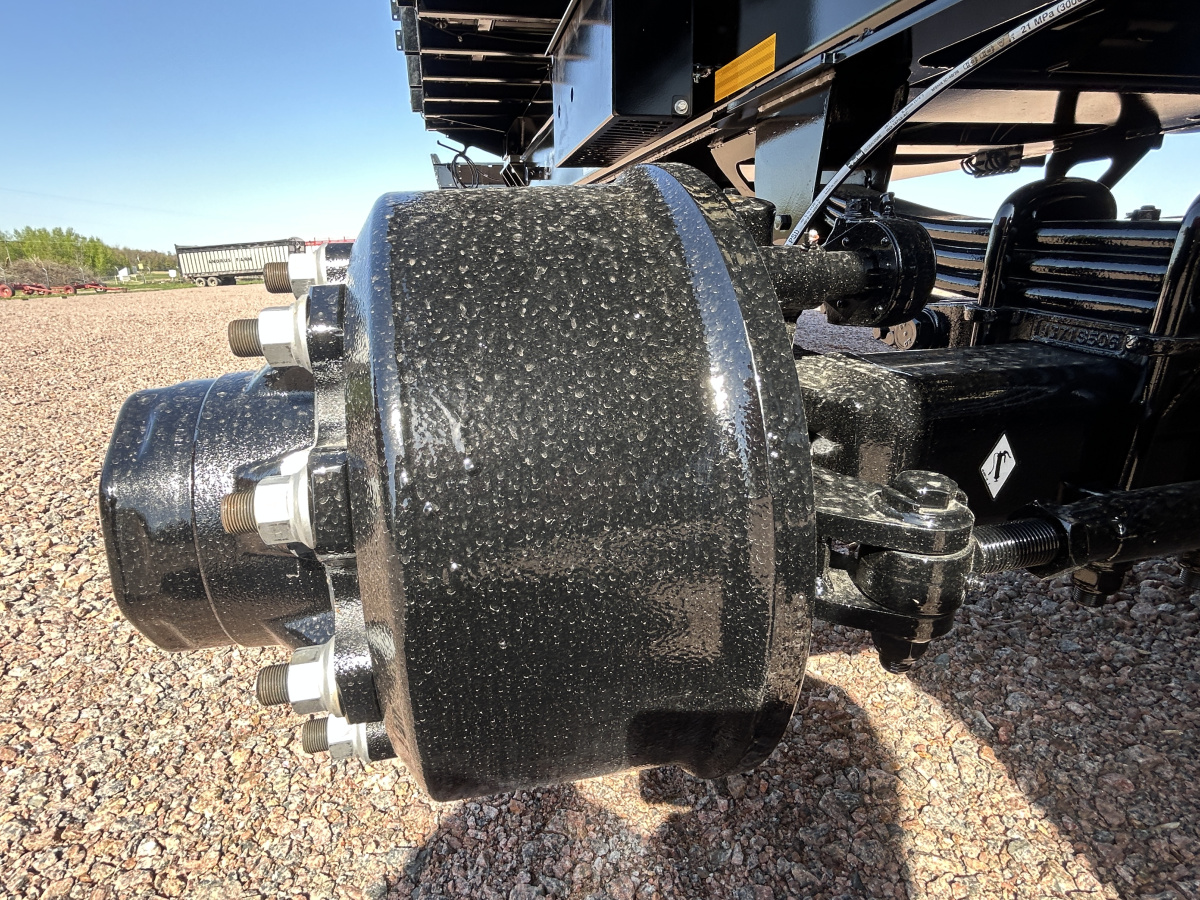

The 9728 & 9732 Models features a SSTS48 (Tridem) or SSTS64 (Quad) Trailer with HD spring suspension and front & rear steer axles. These 3 and 4 axle packages allow you to match your Crop Pro Chassis to the material hauled, payload and tractor on your operation. Brakes are standard on all axles.
Big Floatation!
Choose from 2 radial tire options for big-time floatation qualities!
710/50x26.5 or 800/45x26.5
710/50x26.5 or 800/45x26.5
High-Volume Extension Packages (optional)
This high capacity side extension package is commonly utilized for bulkier products like silage and poultry litter. 9700 models offer 12" straight or 24" flared extension options. It can be utilized in conjunction with the guillotine door. Side extensions are intended for light, bulky material, don't exceed the axle or drawbar hitch ratings of your tractor or implement.

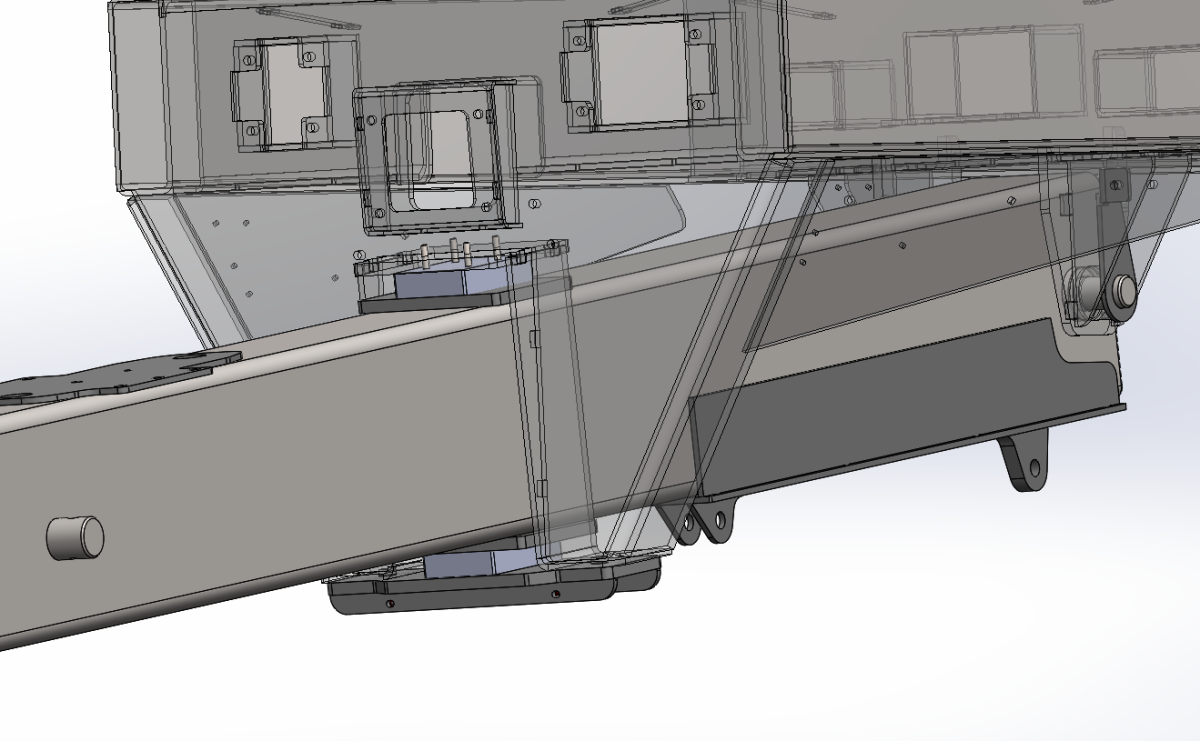

Heavy Duty Flat Weigh Bar System (optional)
These bars provide top of the line performance, strength and easy servicability. Miliary connector j-boxes, robust mount systems and simple access!
8-pt on 9724 / 10-pt on 9728 / 12-pt on 9732 models
8-pt on 9724 / 10-pt on 9728 / 12-pt on 9732 models

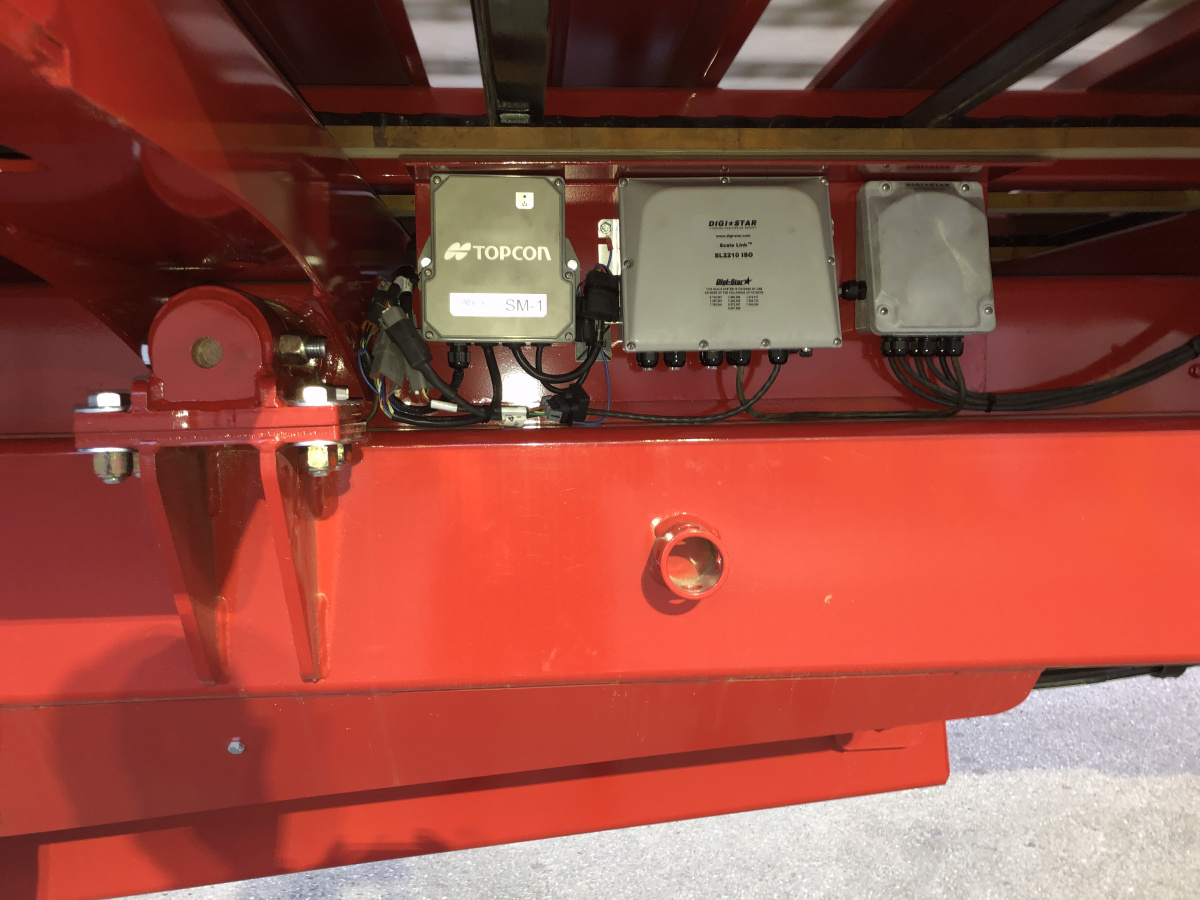

Variable Rate Scale Technology
Meyer Crop Pro offers a simple scale package or this complete Top Con Athene Varialble Rate Package. It is an ISOBUS based system which provides precision application of your product, mapping too! (optional, also must order weigh bar package for use with Athene)
